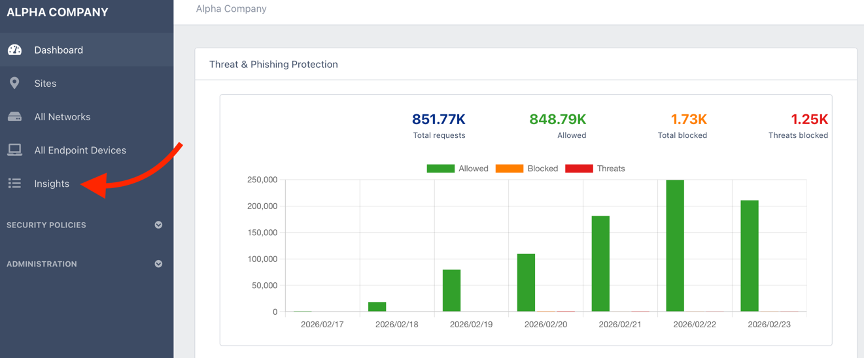

- Insights
- Settings
Overview
Organization Admins can manage their SecureConnect deployment with:
- Administrative view and management
- Portal views
- Creating new Sites and Users
- Troubleshooting network issues
- Insights
- Devices, applications
- Performance

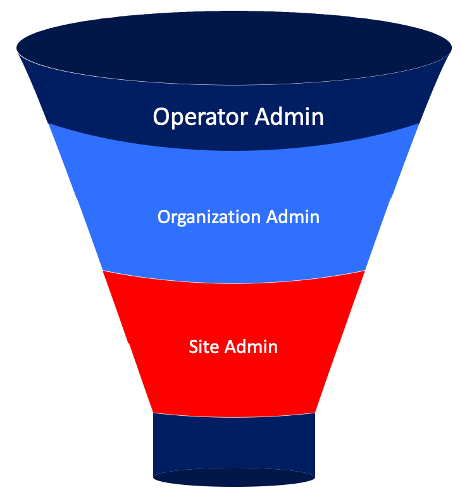

SecureConnect User Profiles
Account Creation
Your new SecureConnect Organization Admin account will be created on your behalf.

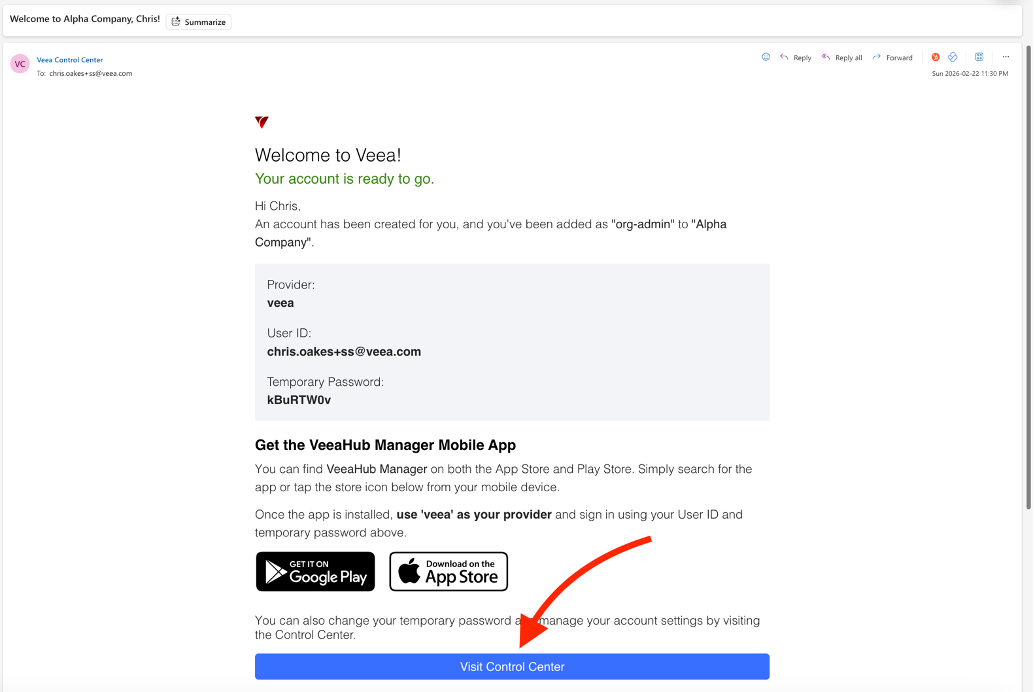

- First-time users will receive a welcome email asking to verify their email address which authorizes their account.
- Whitelist emails from @veea.co to avoid missing critical messages.
- You will receive a temporary password in this welcome email.
- Tap or click on the “Visit Control Center” link at the bottom of the email. https://controlcenter.veea.co/

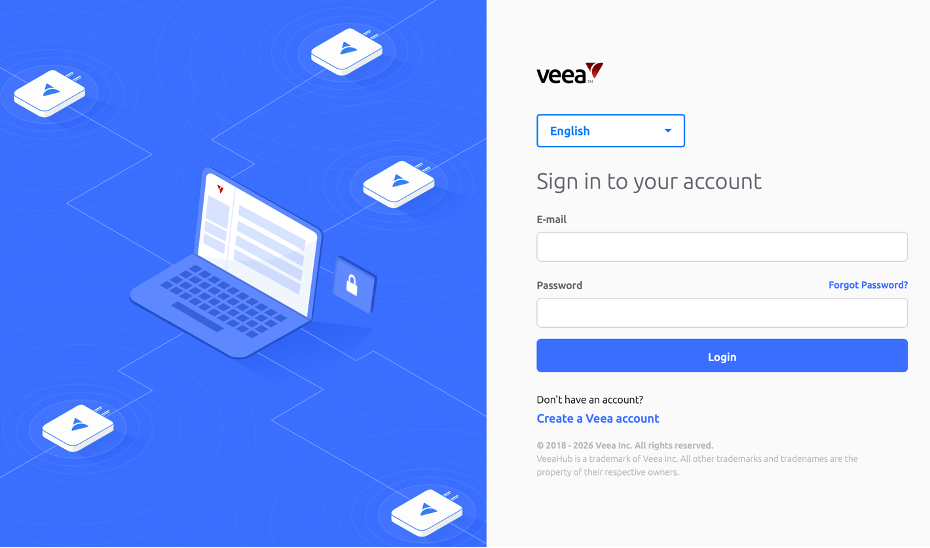

- You will arrive at the Control Center login page.
- Enter your account email address and the temporary password from your welcome email.
- Tap or click the Login button.

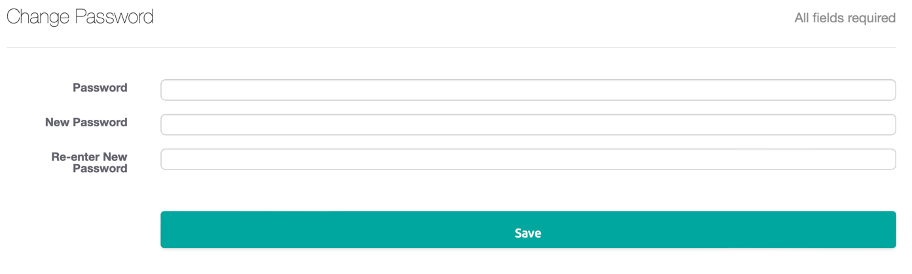

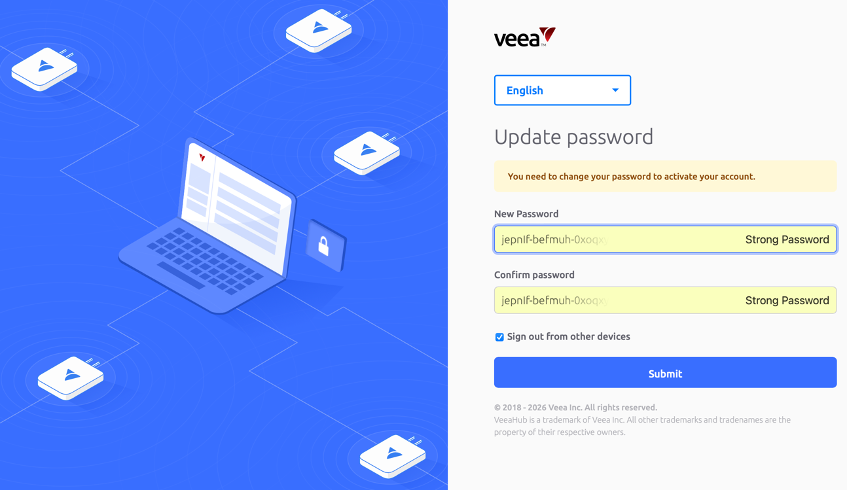

You will arrive on a page where you can choose your new (permanent) password. Tap or click the Submit button when finished. To reset this password in the future, please visit the Settings section of Control Center, referenced in the “Settings” section of this Guide.
Forgotten Password

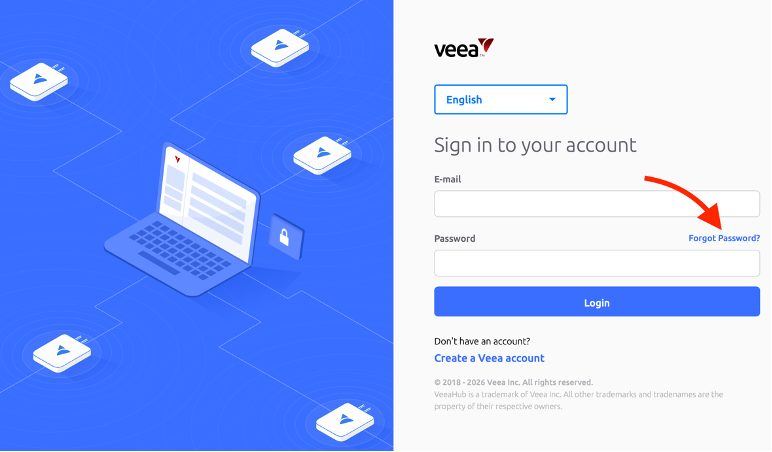

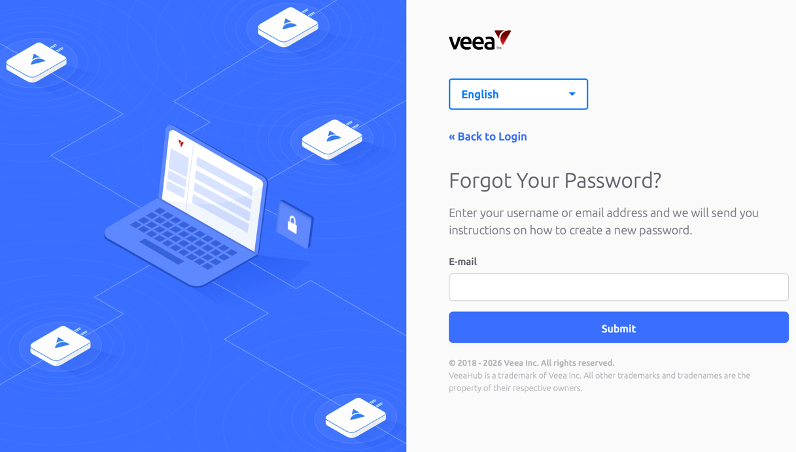

If you’ve forgotten your account password, simply select the “Forgot Password?” link.
You will be asked to provide your account email address, and then select Submit.
You will be taken to the “New Password” page to create a new permanent password.
VeeaHub Manager Mobile App

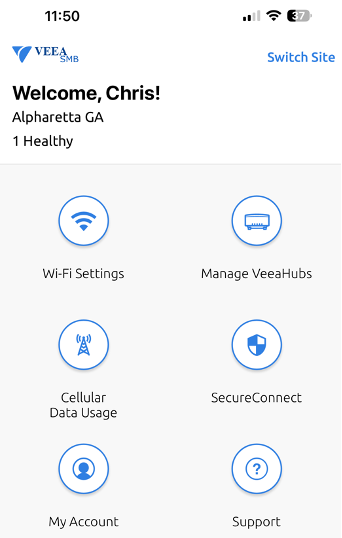

VeeaHub Manager (VHM for short) is a mobile app to keep Organization and Site admins connected and in control of the Veea SecureConnect environments. Please view the separate VHM SecureConnect Guide for more information.
Hub Enrollment
Using the VHM Mobile App, SecureConnect Hubs are enrolled into their respective Sites. Enrolling the Hub is essential in order for it to be properly set up for using SecureConnect. For more information, please review the separate SecureConnect Unboxing, Installation and Enrollment Guide.
Accessing SecureConnect
- Visit: controlcenter.veea.co
- Use your Organization Admin credentials.
Organization Home Page

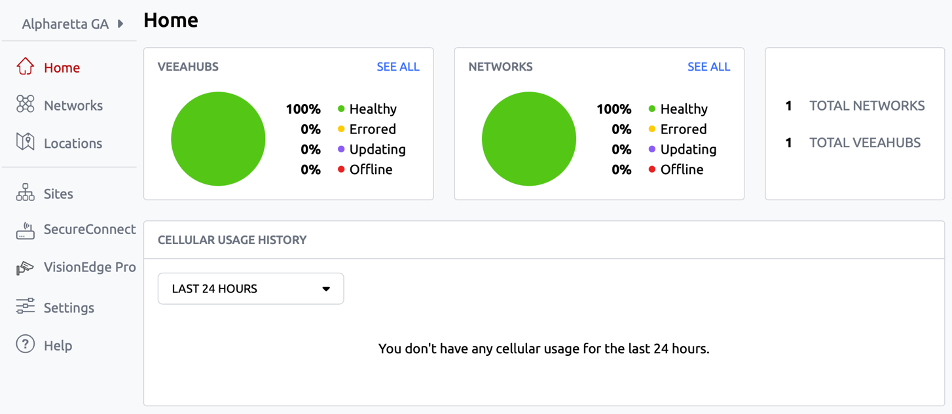

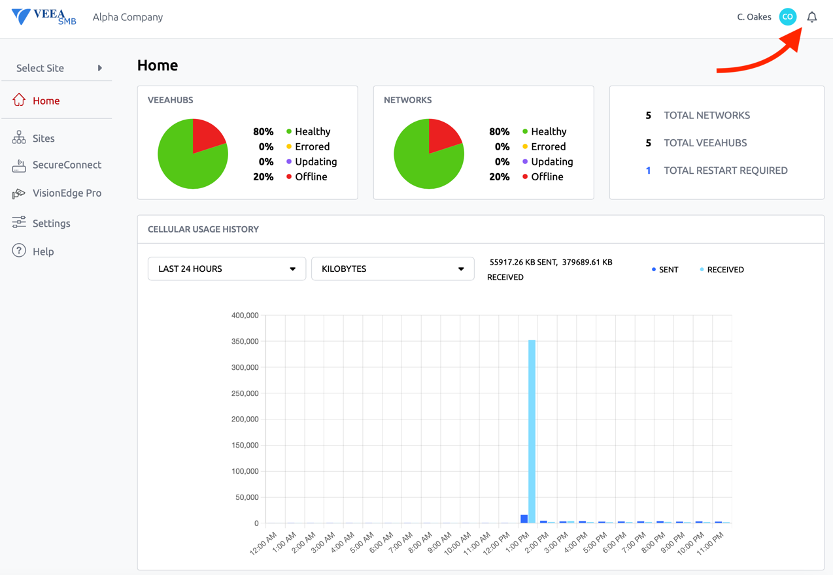

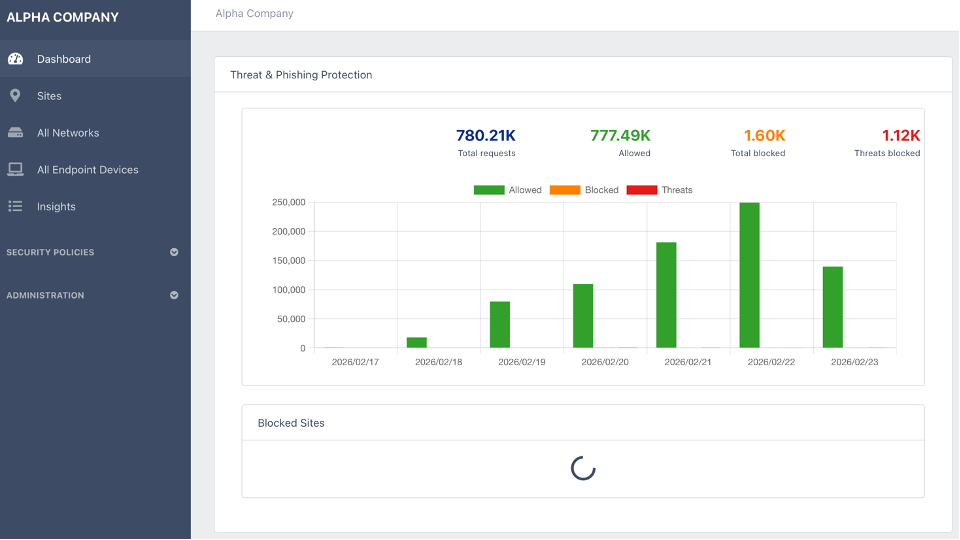

After logging in, you will land on the home screen viewing a dashboard across all of the Sites (locations) in your Organization.

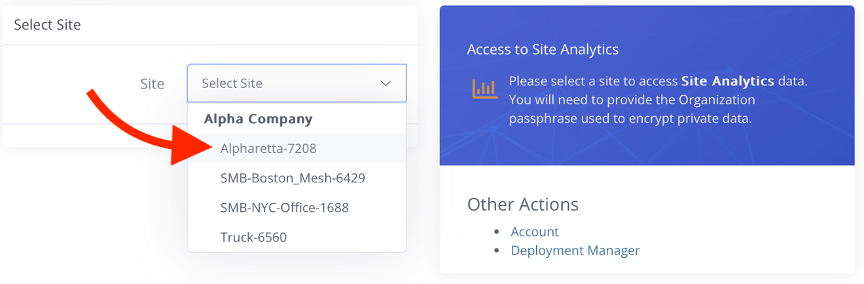

- At the upper left, you can switch to any individual Site view.
- At the upper right, you will see links to view your account settings and active notifications (bell icon). Please reference the Settings section of this guide for more information.
- You can click on the pie chart or any of the colored bars to view detailed information for that category.
Managing Sites (Locations)

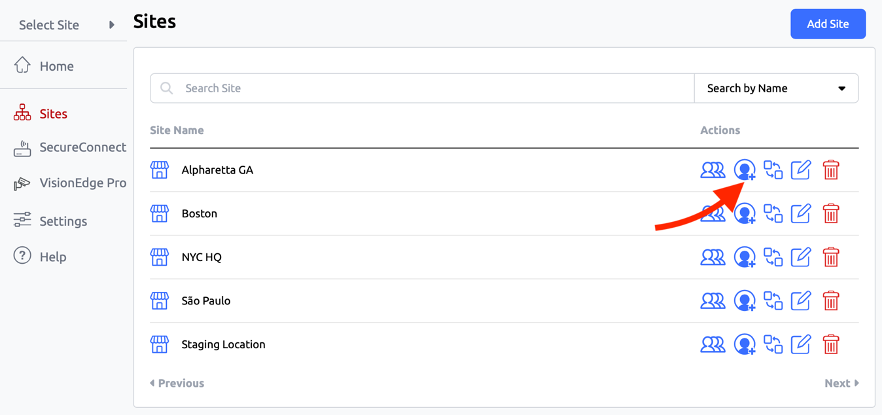

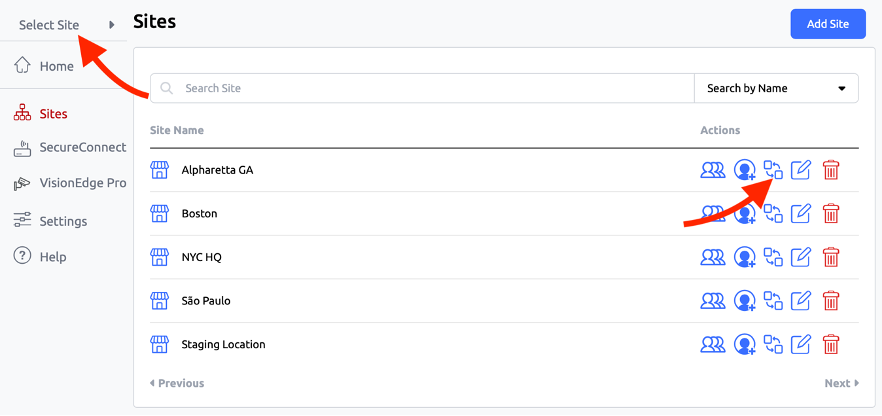

Sites Home Page

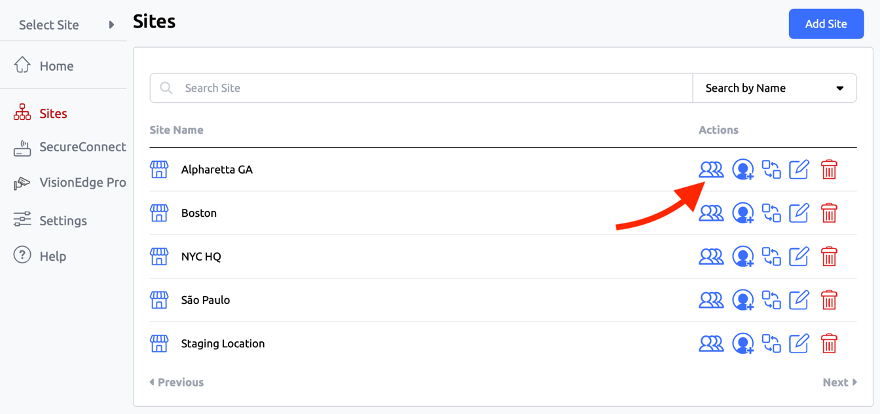

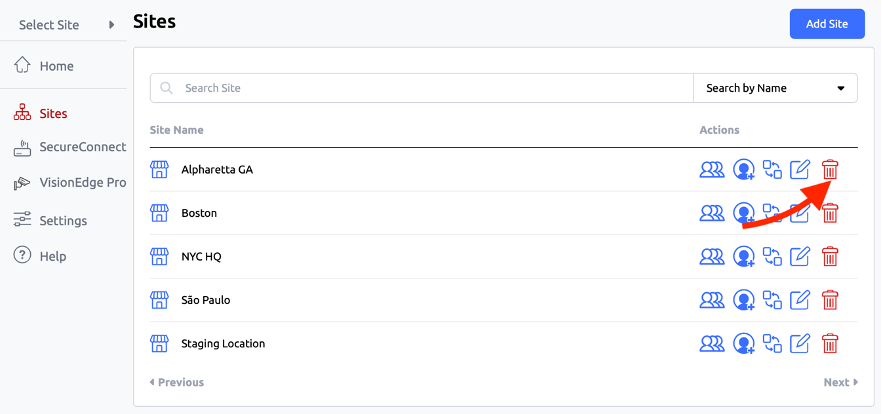

On the Sites page, you have access to:
- View a list of all sites in your account
- Search for a site
- Add a new site
- Delete a site
- View, add and remove site administrators
- Change site names

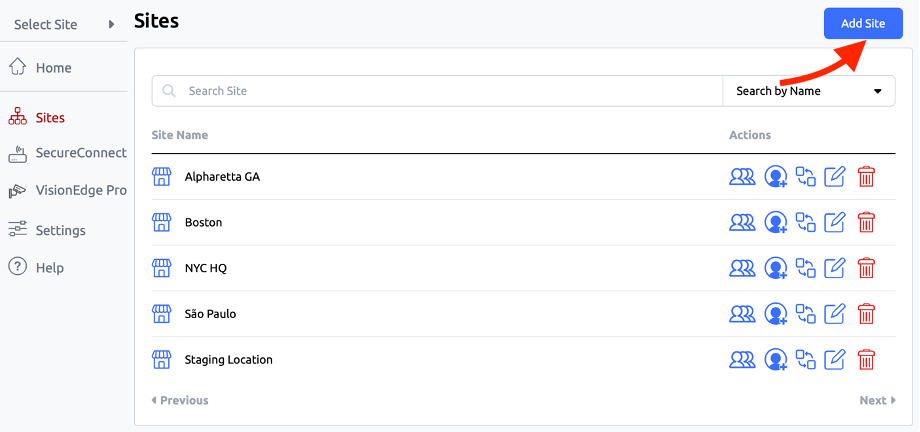

To add a new site, select “Add Site” at the upper right of the page.

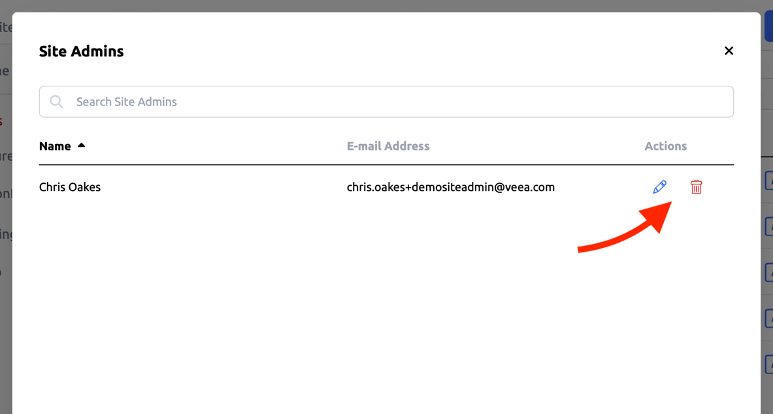

When viewing the Site Admins, you can also edit their profile or delete their account.

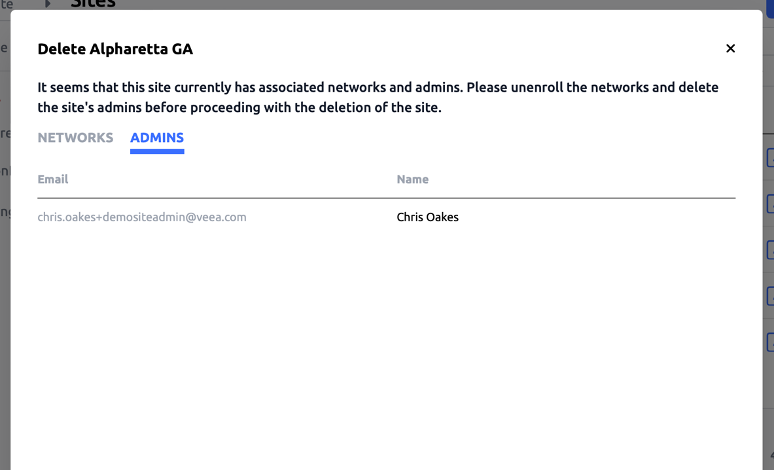

*Note that when deleting a Site, as a precaution, you’ll first need to unenroll the network(s) and delete the Site Admins.
Individual Site Administration
Site Home Page
On the Site page, you can view a dashboard of the overall health and cellular data usage across the networks at that Site.
You can also select “View data for all sites” at the upper right to view the health and status of all of your Sites at once, in an aggregated view.
Networks Page

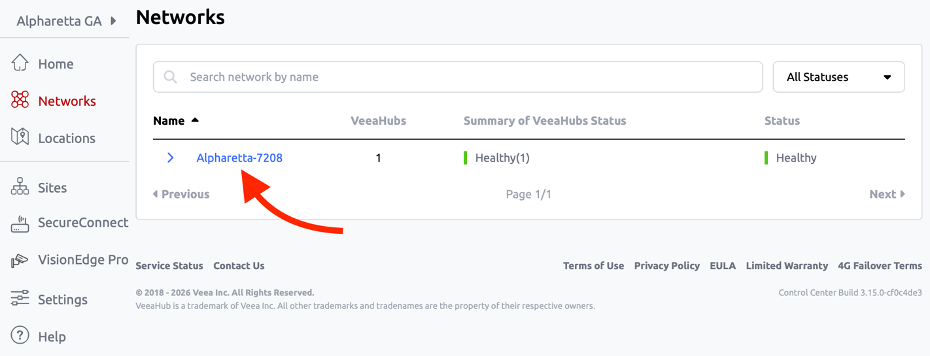

Clicking on the Networks tab on the left brings you to the Networks page where you can view a list of SecureConnect Hubs installed at that Site along with the health status of each Hub.
Click on the Network name (in blue) to access its Network home page.
Network Home Page
Buttons at the upper right give you options to change the network name or configure Wi-Fi.

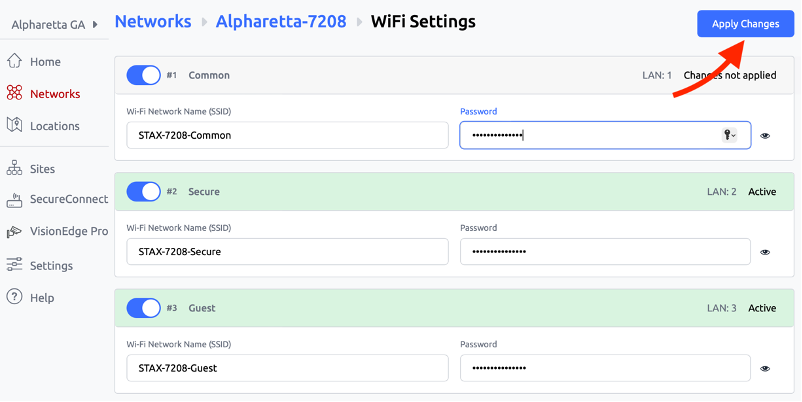

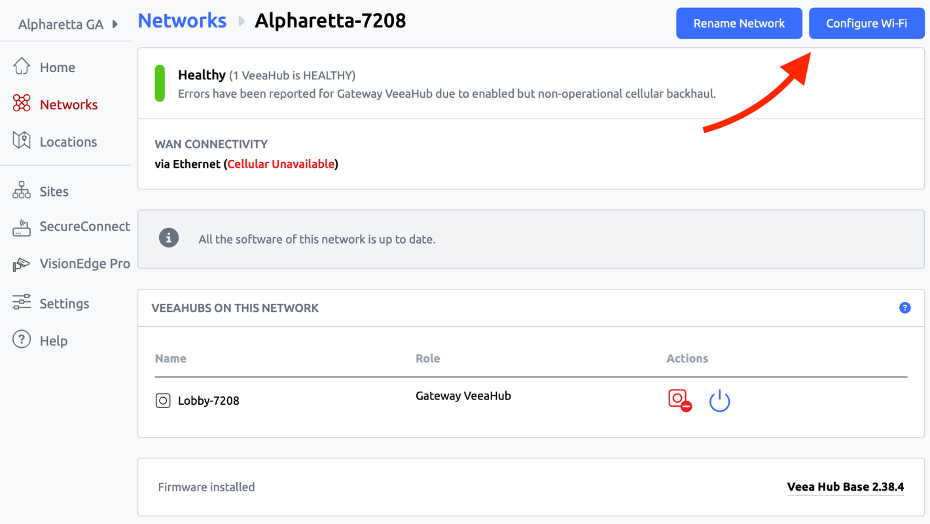

Configure Wi-Fi
After selecting the “Configure Wi-Fi” button, you can modify the names and passwords of the built-in network profiles. Once modified, click the “Apply Changes” button at the upper right.
Advanced Port Configuration
Further down the Network Configuration page is a section dedicated to port configuration, including VLAN Tagging for the Common, Guest or Secure network profiles.
Access - the port carries a single untagged VLAN. This is typical for a port connecting to an end device (PC, AP, IoT sensor) that does not understand VLAN tags.
Trunk / Tagged VLAN: the port carries multiple VLANs, each identified by a tag. This is typical for uplinks to other switches, routers or an x-Node/gateway that needs to segment traffic between VLANs.
WAN Configuration
Further down the Configure Networks page is a section for WAN configuration, including enabling the WAN, naming it, assigning it to a physical port and then choosing between DHCP or static addressing. This is where you would configure a static WAN IP.
On the Network home page, you can see if there are software updates available (displayed center-page), and there are options for removing a VeeaHub, restarting or powering down a VeeaHub, as well as resetting the device.
* Please note that removing a VeeaHub should only be used if you plan to unenroll the Hub and re-enroll it into another site/location.

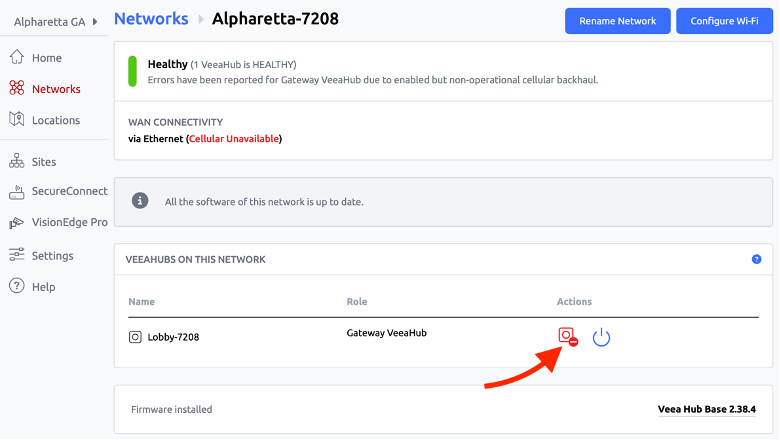

Remove VeeaHub

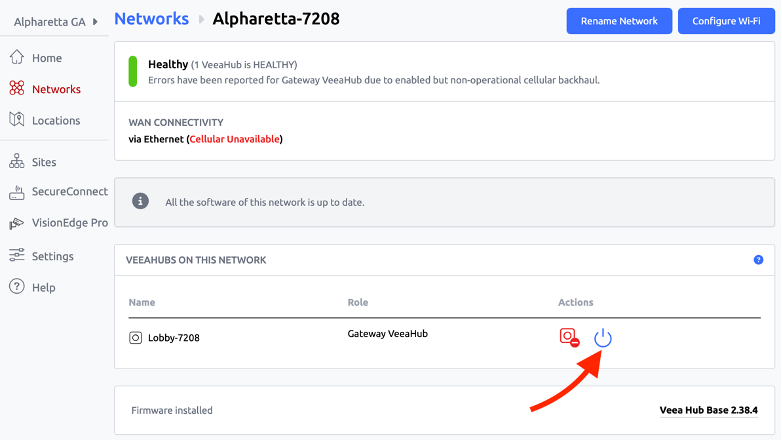

Restart, Shutdown and Reset capabilities are available when clicking on the righthand icon.
Restart, Shutdown and Reset

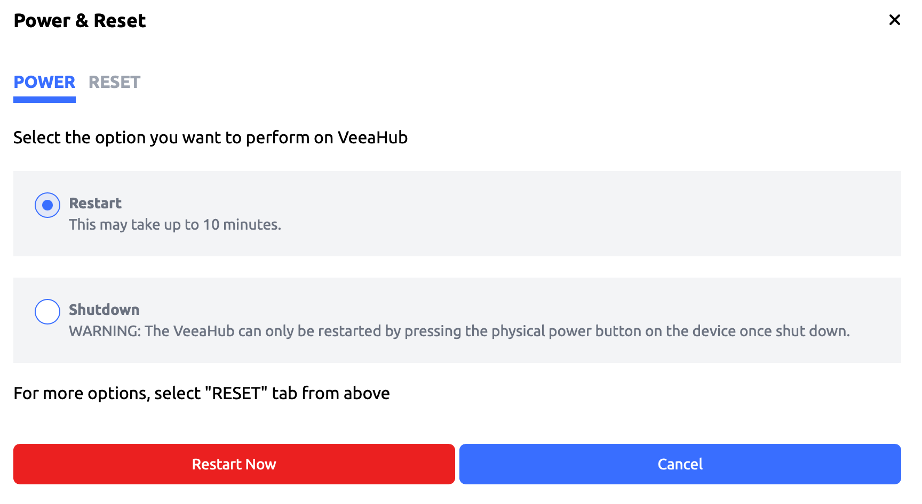

In the Power section, you will be presented with the options to restart (power-cycle) or shutdown (power-down) the Hub.

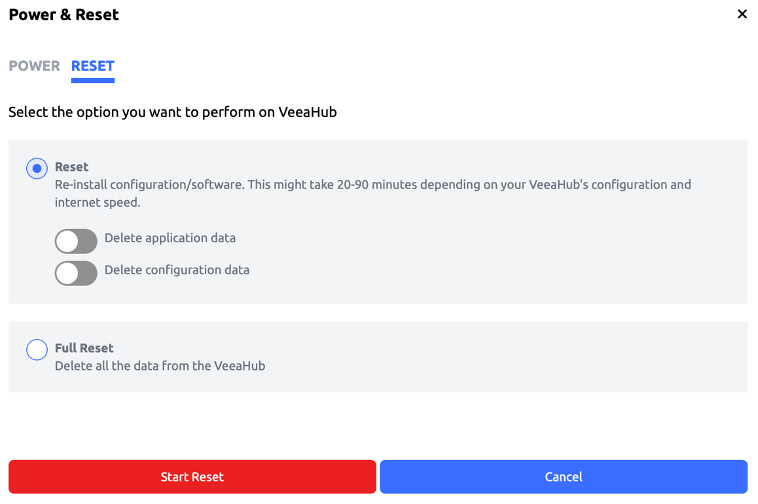

In the Reset menu, you will access Reset options.
*Please note that while VeeaHub Resets completely clear the settings which are possibly preventing a hub from working properly, this should only be performed while on support calls with Veea and when prompted by a Veea customer service agent to do so. This will essentially “wipe” the Hub, making it non-operational until it is re-enrolled again.
Installed Firmware

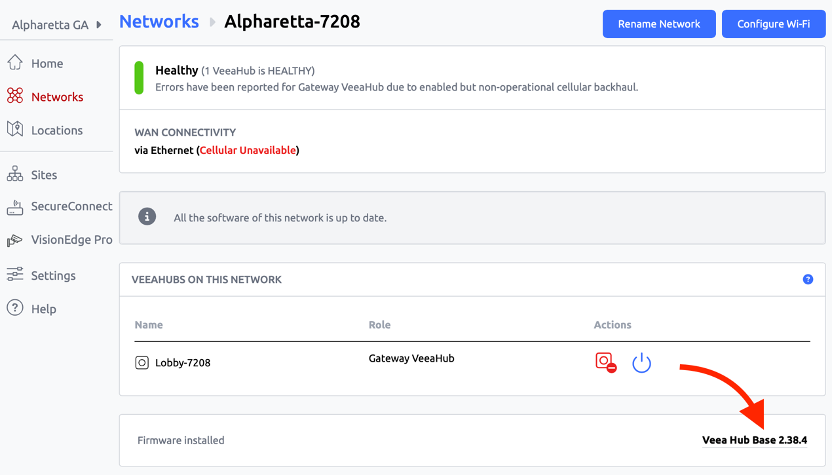

On the Networks home page, you can see the current version of firmware running on the Hub. This can be important for Support escalations and troubleshooting.

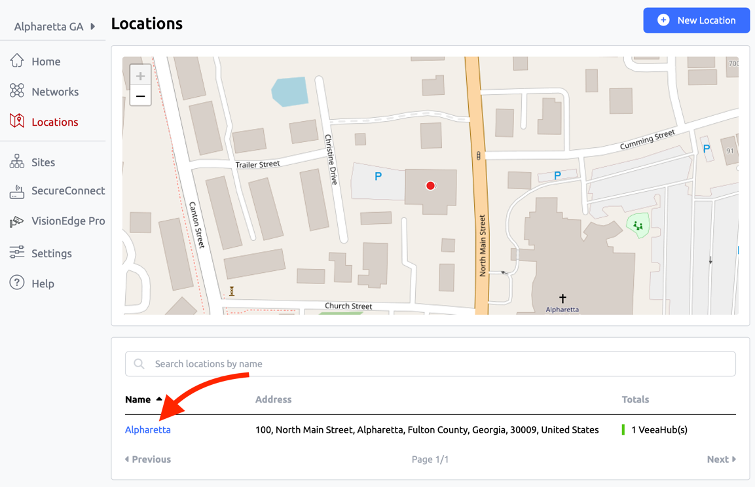

Locations Page
It’s important to make sure a Site and its Hubs have Locations created so that the Hub status can be monitored from the central management network operations center.

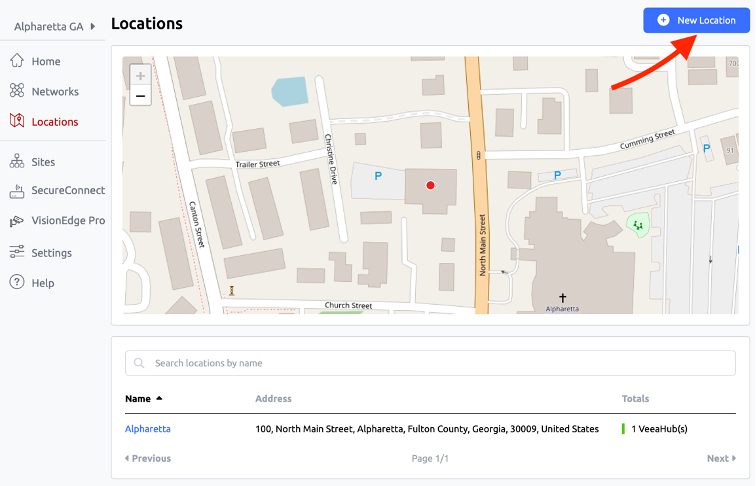

You can select a map view or a list view of your locations. Click on the “New Location” button at the upper right to get started.
Next, select the Site you are creating a location for and click the Select Site bar at the bottom.

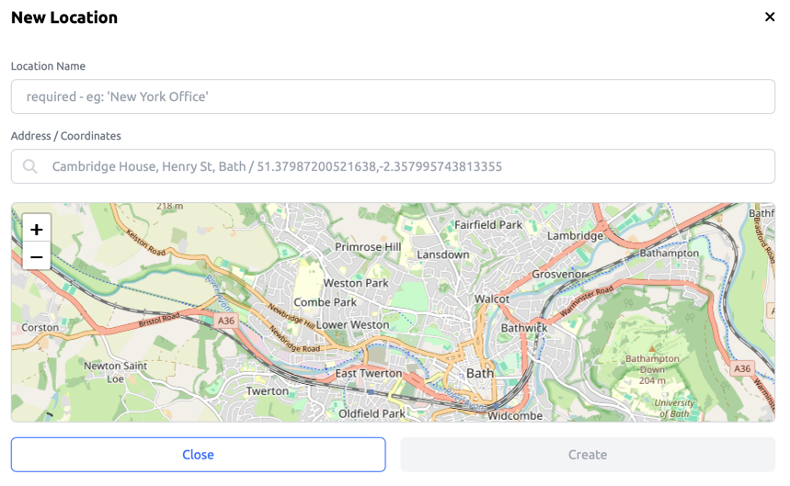

Enter your desired Location name and then the address (or latitude / longitude). Press Enter to make sure the system recognizes your address. Then click the Next tab in the lower right corner.
Select the network you want to use for your new location and then select the Create Location tab in the lower right corner.

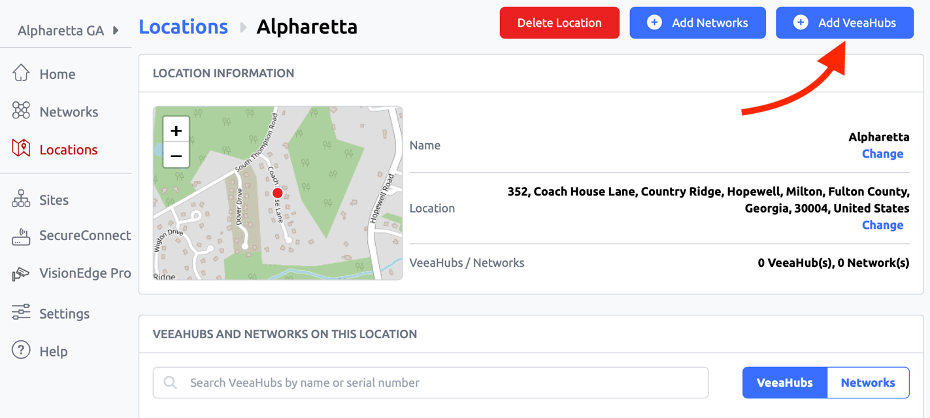

You can now see your new location on the map.
Location setup is now complete!
SecureConnect
All SecureConnect networking functionality, set up, operations, insights and dashboards are found here.
After clicking on the SecureConnect link on the lefthand pane, you will land on the home page and see a security dashboard of observed threats, phishing attempts and blocked web sites across the Organization.
Sites

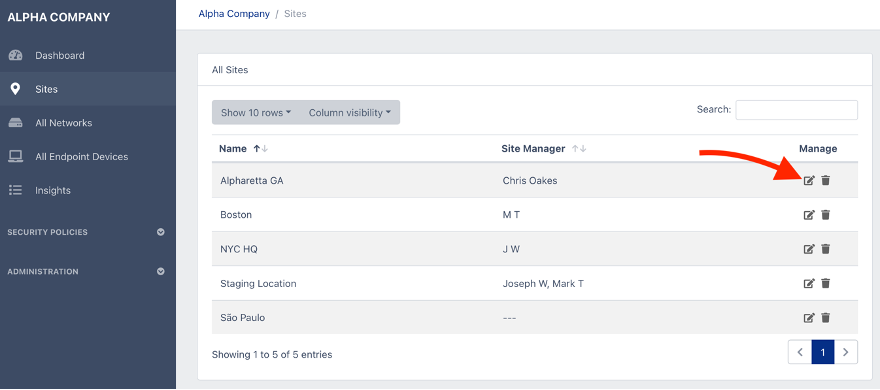

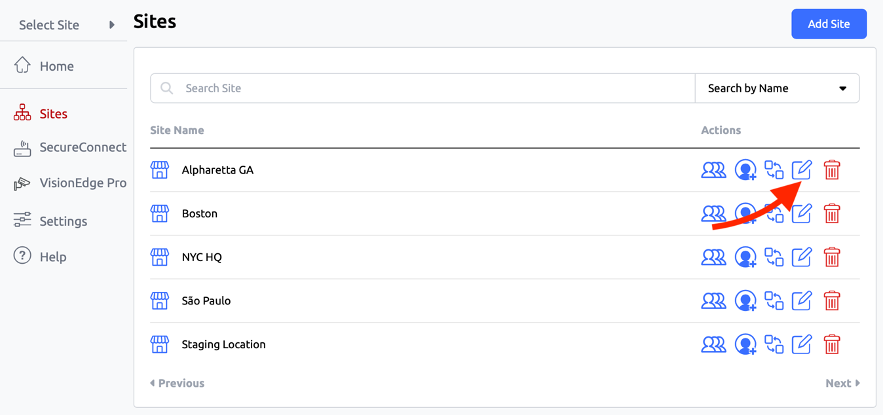

The Sites page shows a list of Sites (locations) for that Organization and provides the ability to Edit or Remove the Site.
*Caution: removing the Site will remove network functionality for that location. This is only to be used in decommissioning a Site.

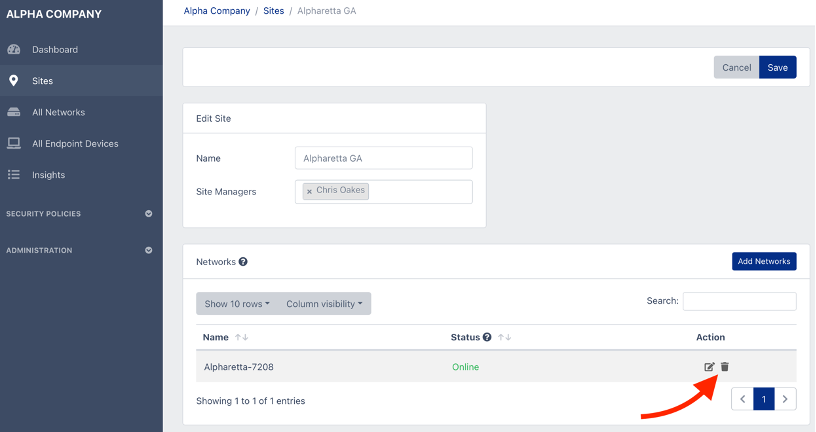

The Edit Site option provides options for editing the Site name and adding/removing Site Administrators.
At the bottom of the page, you will see a list of Networks at that Site with the ability to Edit or Remove the Network.
*Caution: removing the Network will remove network functionality for that location. This is only to be used in decommissioning a Network.
All Networks
The All Networks section provides a real time view into networks in use across the Organization including:
- a network list
- online status
- version of SecureConnect software
- live network views
- editing network information

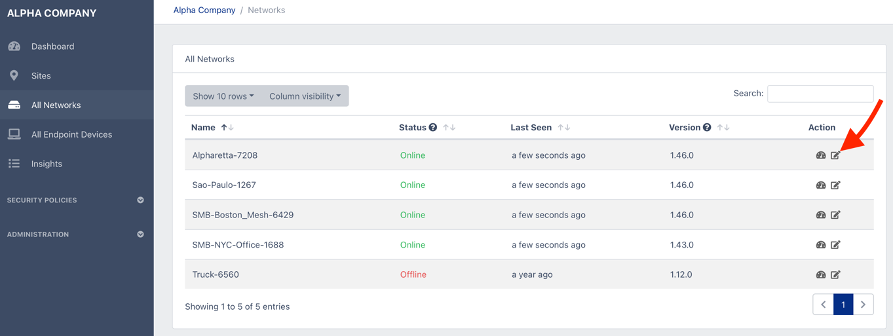

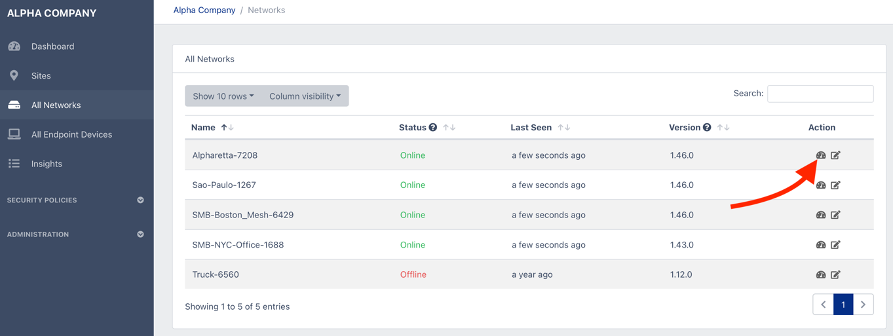

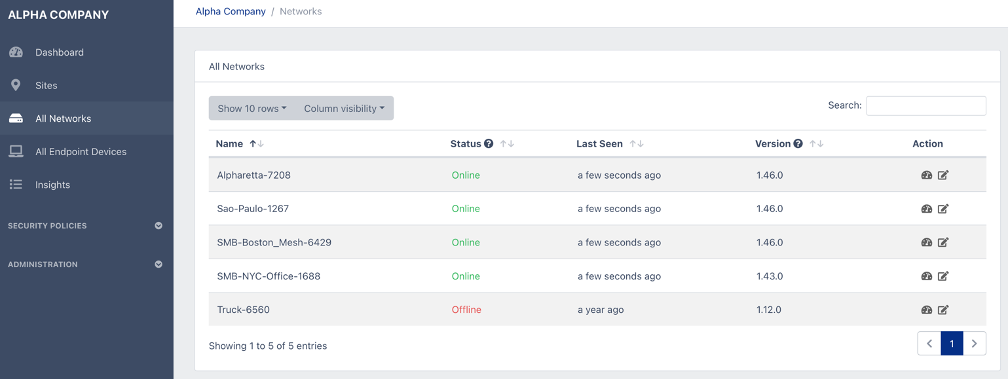

All Networks home page (below)

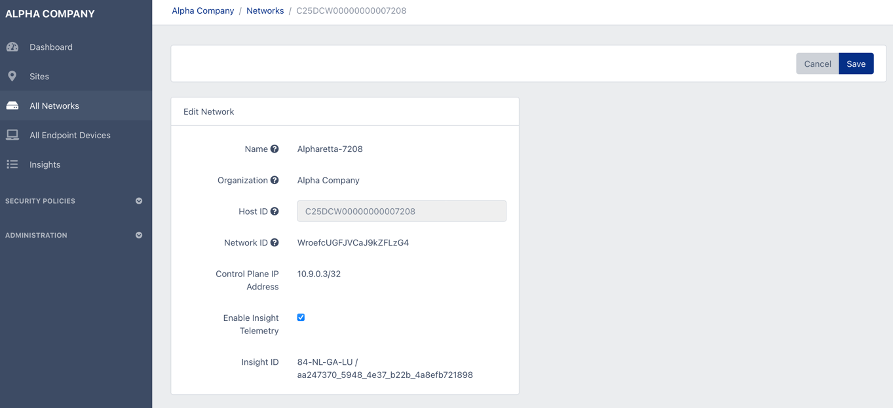

Select the Edit Network action icon on the righthand side to view the:
- organization name
- hub serial number
- network ID number
- control plane IP address
You can also select whether to enable or disable Insights for this Network.
Port Forwarding

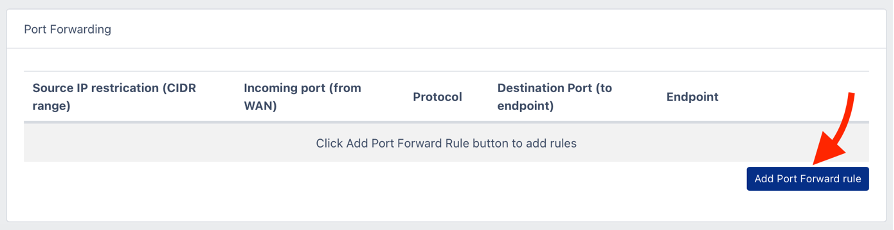

Click the “Add Port Forward Rule” button to add port forwarding rules.

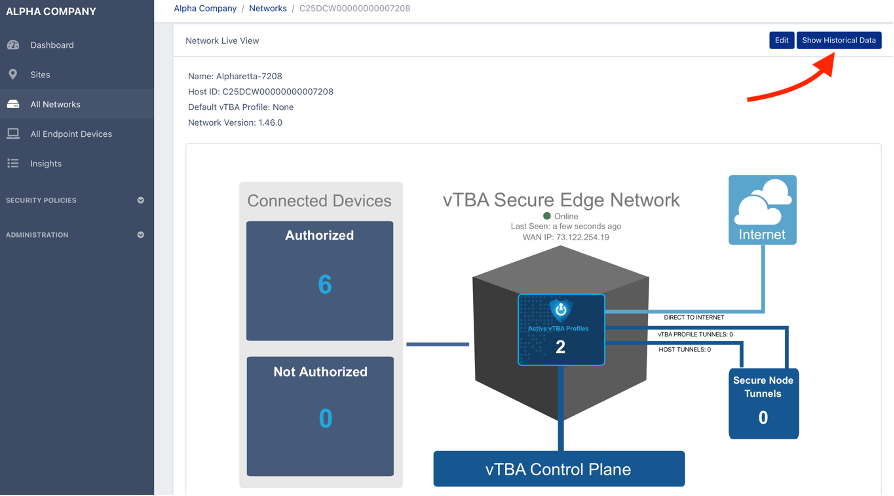

Select the “Live Network View” action icon on the righthand side to access a live view of the SecureConnect control plane.
This view includes:
- devices authorized
- active profiles
- online status
- WAN IP
- host tunnels

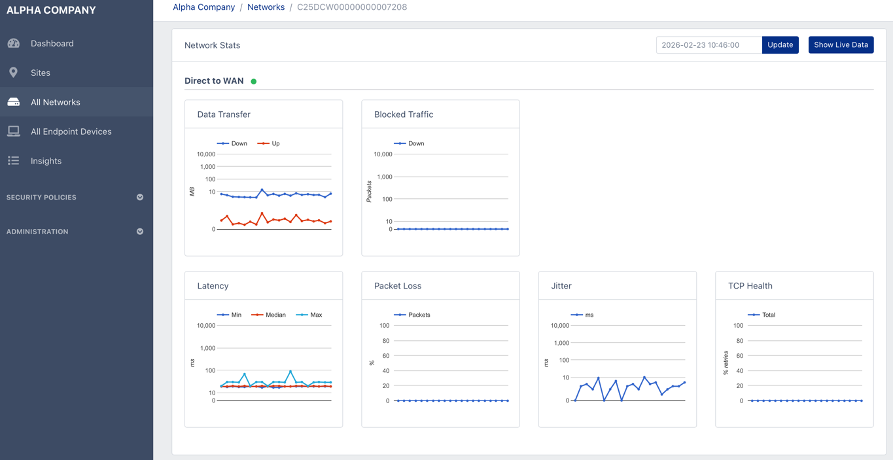

Select the “Show Historical Data” tab in the upper right side to view charts on:
- data transfer
- blocked traffic
- latency
- packet loss
- jitter
- TCP health
Authorizing Devices onto the Network

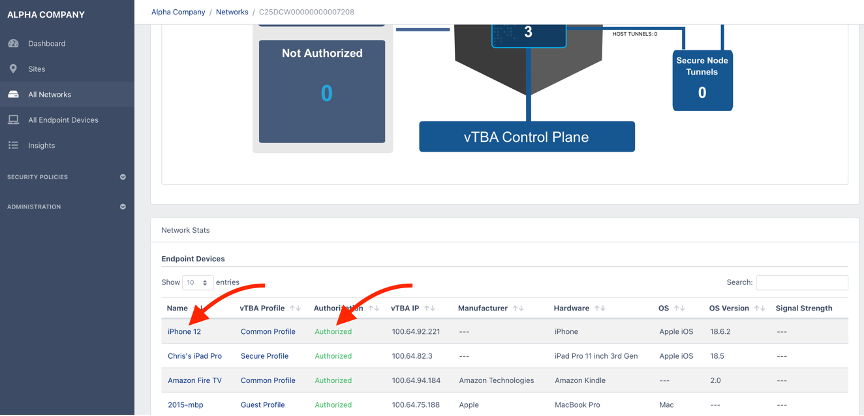

Scrolling down the Live Network View page, you will find a list of devices and their authorization status.
Clicking on the device name brings you to the home page for that device where you can either Authorize or Block it from joining the network. Once authorized, you can visit this link again to Deauthorize the device at any time.
Be sure to click Save after making your selection.
All Endpoint Devices

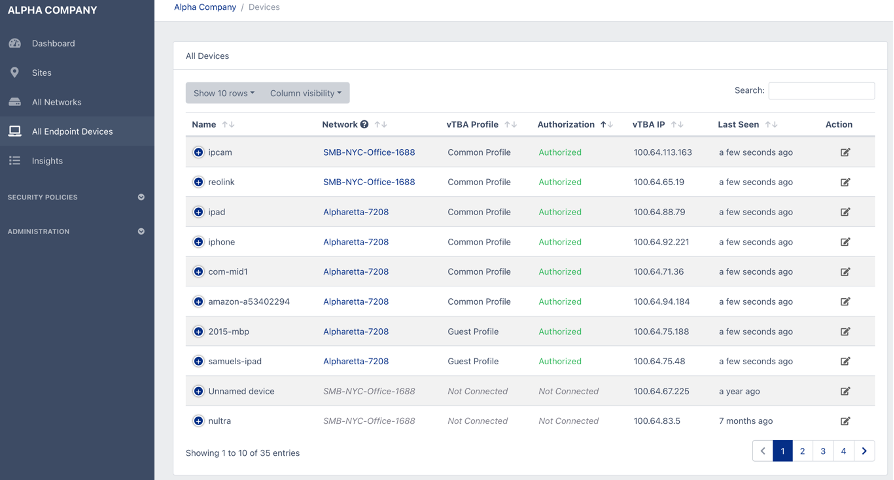

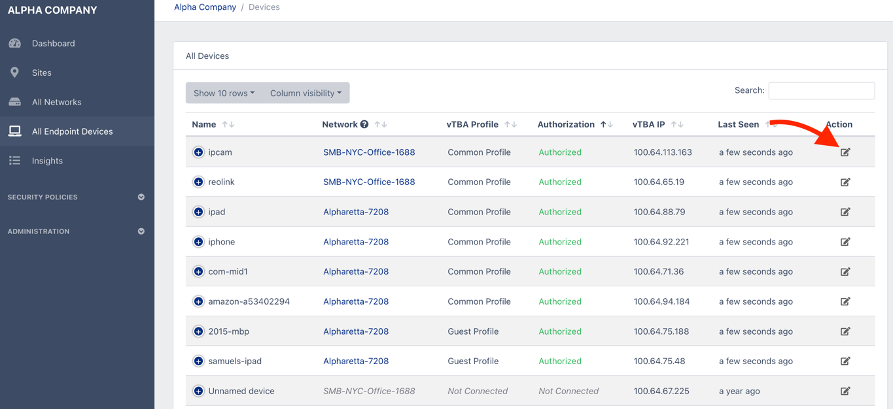

The All Endpoint Devices tab displays a list of connected devices across the Organization. This includes each given device’s security profile as well as detailed connection information about each device. You can search for individual devices using the search bar at the upper right.

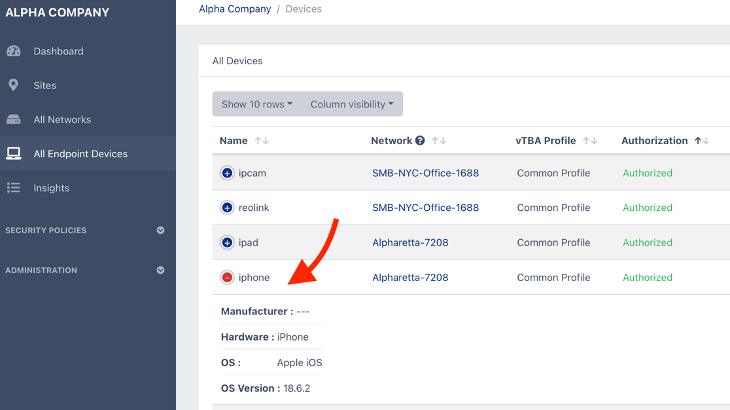

Selecting a device on the left hand side will show you a drop down with operating system and respective version number for that device.

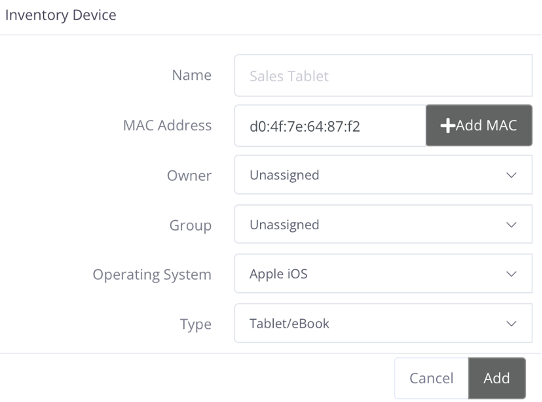

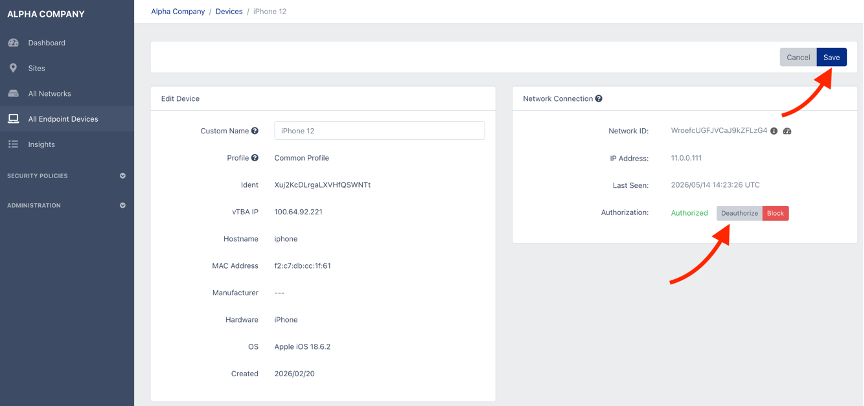

Select the “Edit This Device” action button to personalize the device name and view more detailed device details including:
- IP Address
- Hostname
- MAC Address
- Connection Length (time)
- Authorization Status
Here, you can either Authorize or Block the device from joining the network. Once authorized, you can visit this page again to Deauthorize the device at any time.
Be sure to click Save after making your selection.
SD-WAN Functionality
On the All Endpoint Devices page, you’ll see that SecureConnect includes built-in SD-WAN functionality that connects every Site in your Organization into a single, unified private network. Each endpoint device is assigned an address from a shared SecureConnect IP scheme, no matter which location it connects from, so laptops, printers, file servers, cameras and other devices can reach each other across Sites as if they were on the same local network.
For example, a laptop at one location can directly access a file server or printer at another location via its SecureConnect IP, with no separate VPN configuration required.
Security Policies
Content filtering and profile administration are found under the Security Policies tab on the left-hand pane.
Content Filtering

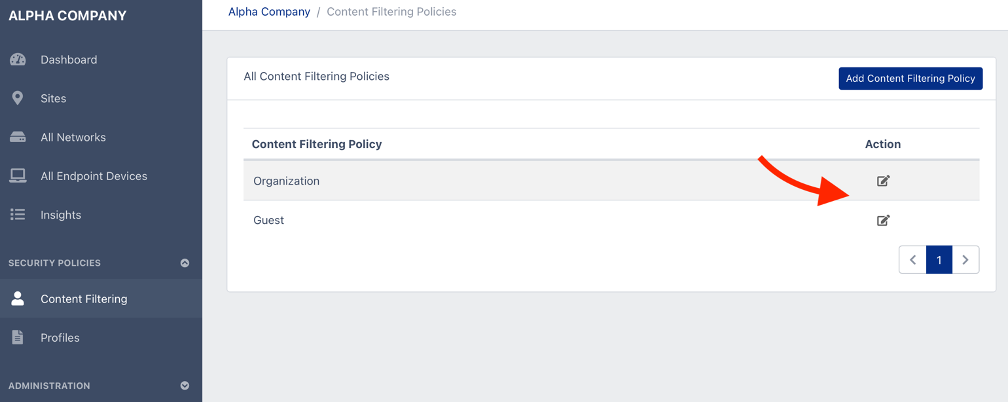

On the Content Filtering page, you will find a list of existing content filtering policies, the ability to edit them and, at the upper right of the page, a button to select to implement new policies.

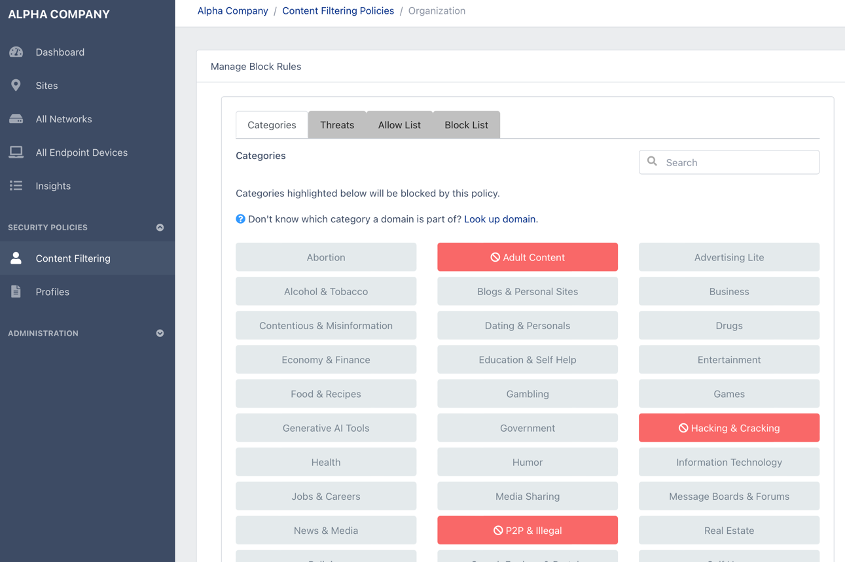

The first tab under Content Filtering is “Categories”. Here, you simply click on the categories you want added or removed. The Categories marked red are filtered out.

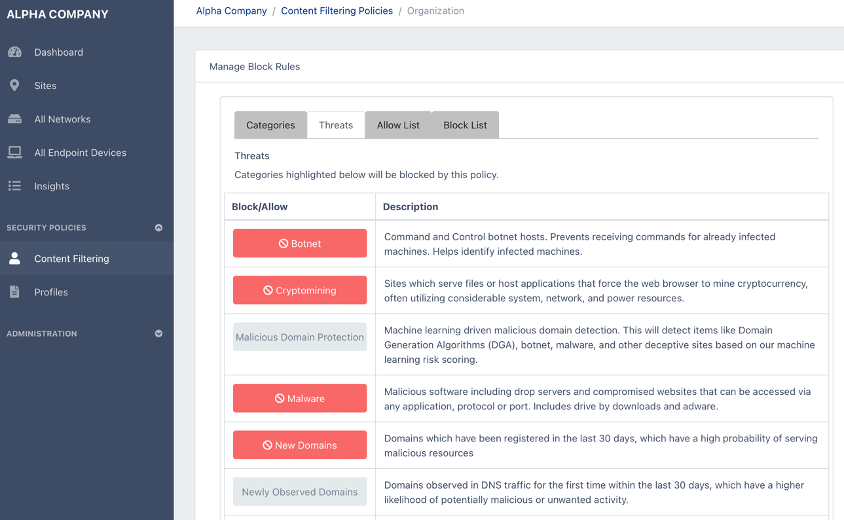

The next tab is for managing security threats. The categories highlighted here will be blocked by this policy.

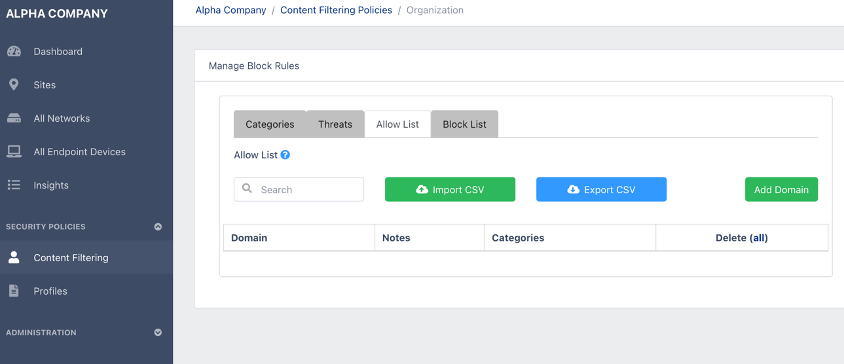

The third tab is the allowed list. Here, you can either manually add or import a .csv file of web sites that are allowed to be visited by users of SecureConnect.

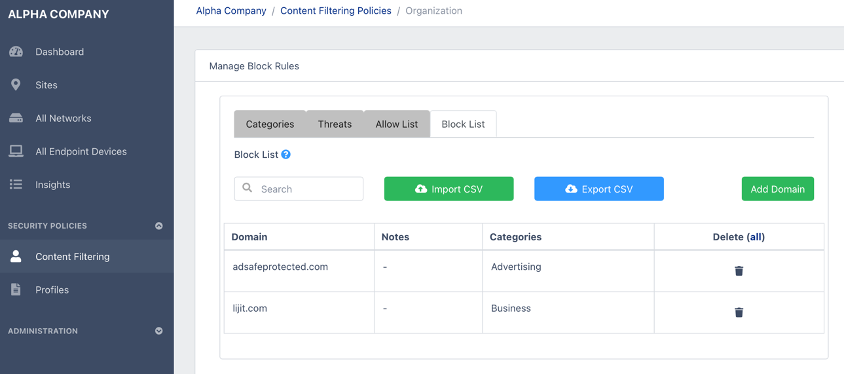

The final tab is for managing blocked lists. Here you can manually add or import a .csv file of web sites to be blocked.
Profiles
Profiles are one of SecureConnect’s defining features. Every endpoint that connects to the network is assigned to a profile, and the profile determines which other endpoints it can communicate with. This keeps the network isolated and segmented: sensitive systems, general-use devices, devices such as cameras and sensors, and guests share the same physical infrastructure, but each group can only reach the endpoints its profile allows.
This segmentation limits the reach of a problem. If a general-use endpoint or a sensor is compromised, it cannot reach the point-of-sale systems or the management computer, and guests never have access to the Organization’s endpoints.
To open the page, expand Security Policies in the left-hand menu and click Profiles.
Available Profiles
The top of the page shows the four profiles. The three profiles inside the Organization box belong to the Organization’s network; the Guest Profile is separate from them.
- Secure Profile: for sensitive endpoints, such as point-of-sale systems and the management computer. Endpoints in this profile can connect to endpoints in the Common Profile and the Device Profile.
- Common Profile: for all other endpoints, such as TV displays, shared office computers, and shared printers and speakers. They can connect to endpoints in the Device Profile, but not to endpoints in the Secure Profile.
- Device Profile: an isolated profile for devices such as cameras and sensors. Its endpoints cannot connect to endpoints in the Secure Profile or the Common Profile.
- Guest Profile: an isolated profile for guest endpoints, with a separate web filtering policy. Its endpoints cannot connect to any of the Organization’s endpoints.
Permissions are defined by the profile an endpoint is connected to. For example, a Secure Profile endpoint can connect to a Common Profile printer, but a Common Profile endpoint cannot initiate a connection to the Secure Profile.

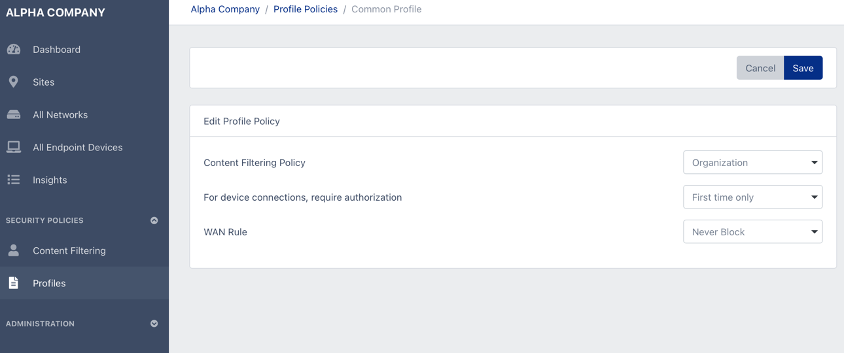

To change a profile’s settings, click the edit icon in the Actions column of that profile’s row. From there, you can adjust the values shown in the table, such as endpoint authorization handling and the WAN rule.
SecureConnect Administration Menu
In the Administration menu, you can click Settings to make custom network configurations, and you can click Administrators to view a list of administrators in your Organization.
SecureConnect Settings / Custom Networks

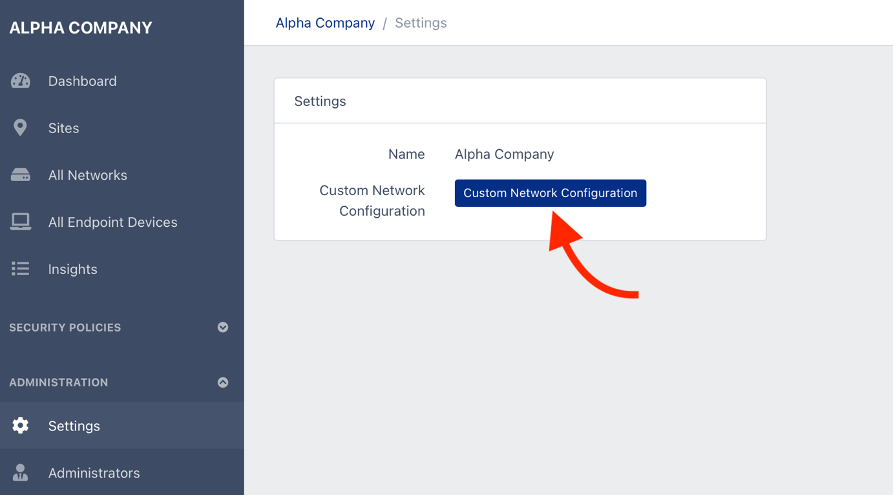

Click on the “Custom Network Configuration” button to access the option to make custom changes to network settings, including LAN, DHCP, Subnet, MTU, and more.
Note: SecureConnect uses complex custom network settings to support the features provided. Changes to these settings can permanently disable your network.
Any changes will require a system reboot to properly update your network.

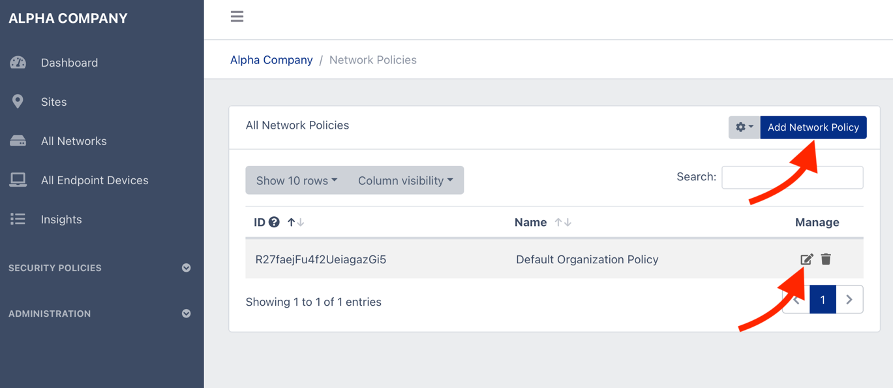

Here you will see the default Network Policy installed with SecureConnect. In the top right, you have the option to create additional network policies.
Select the “Edit this Network Policy” icon to access advanced network features that you can customize.

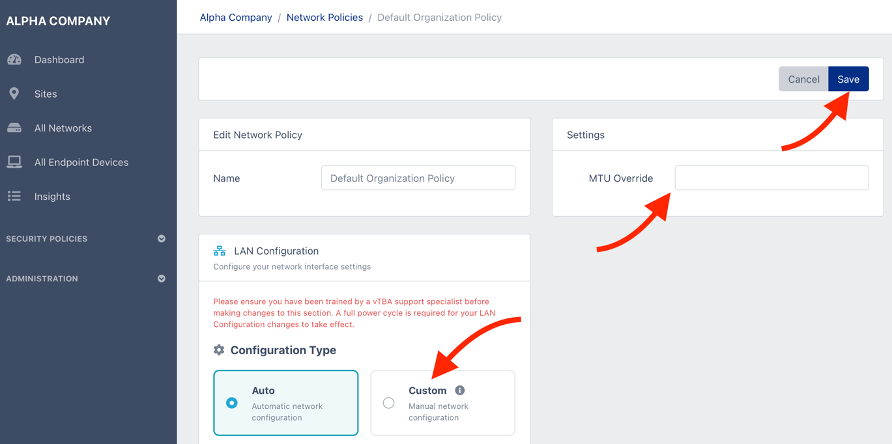

You’ll arrive at the default Organization Policy page with options for:
- Manual adjustment of the MTU (Maximum Transmission Unit)
- Changing the LAN setting from Auto (default) to Custom (where changes can be made to DHCP).
Note: Make sure you’ve received proper networking training before making changes to this section. A full power cycle is required for changes to the LAN configuration to take effect.
Note: Be sure to click Save in the upper-right corner to save any changes you’ve made.

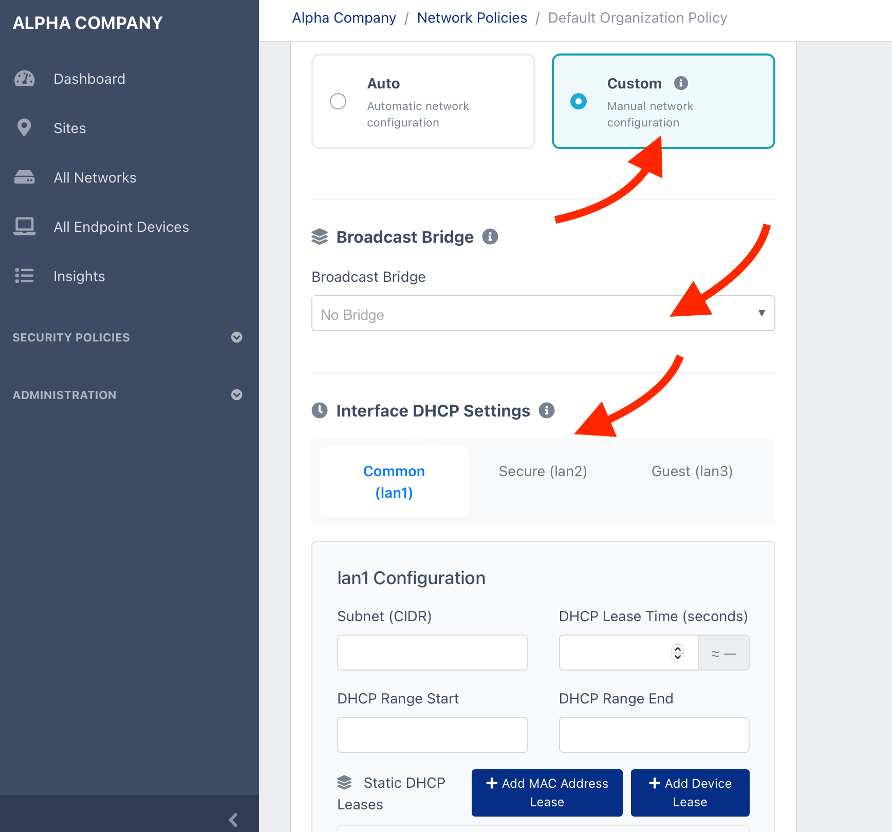

Selecting the Custom option for LAN configuration will present you with options for:
Broadcast Bridge
The broadcast bridge configuration allows endpoints on one LAN to discover endpoints on another LAN. The Secure and Common LANs are part of the same broadcast LAN, to allow, for example, a laptop on Secure to discover and print to a printer on Common.
An endpoint connected to the guest network (LAN3) is not part of the Broadcast Bridge.
The Broadcast Bridge subnet must be a subnet that contains all the Broadcast Bridge LAN subnets and must not overlap with the subnet of any other interface.
Careful subnet calculations must be performed to meet this requirement or the network will malfunction.
Interface DHCP Configuration
The three supported LANs are Common (LAN1), Secure (LAN2), and Guest (LAN3).
For each of the LANs the following can be configured:
Subnet/Mask
The subnet must be an RFC 1918 address. The subnet and its mask must be entered in valid CIDR notation where the IP is the LAN IP of the hub.
The subnet can be any RFC 1918 address, as long as it does not conflict with the hub’s WAN subnet, i.e., the subnet that the hub is connected to for its Internet access. For example, if the WAN IP of the hub is 192.168.1.1, none of the LAN subnets can be 192.168.1.1/24, nor can the broadcast bridge overlap with the 192.168.1.1/24 subnet.
The chosen subnet or mask must not overlap with the subnet or mask on another LAN.
DHCP Lease Time
Any time can be chosen, but it is recommended that it be longer than 1 hour and less than 24 hours.
DHCP Range
The DHCP range, start and end, must be within (be part of) the configured subnet.
Static DHCP Leases
Choose the endpoint device from the list and then enter the desired DHCP lease IP. The static DHCP lease IP must be within (be part of) the DHCP Range for the LAN segment being configured.
The endpoint device must be power-cycled to get this new IP and work properly on the network.
Note: Be sure to click Save in the upper-right corner to save any changes you’ve made.

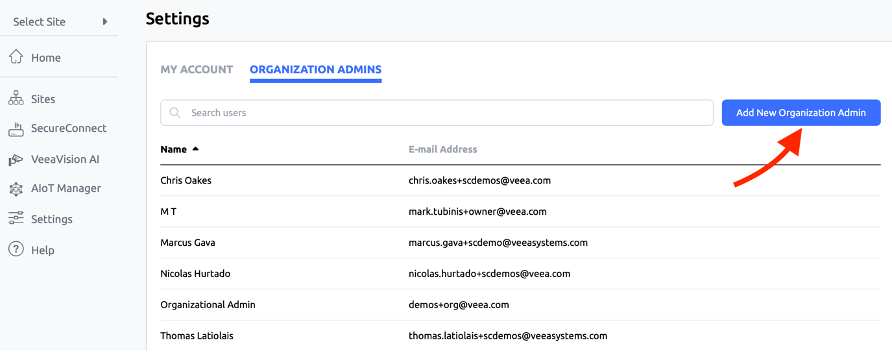

SecureConnect Administrators

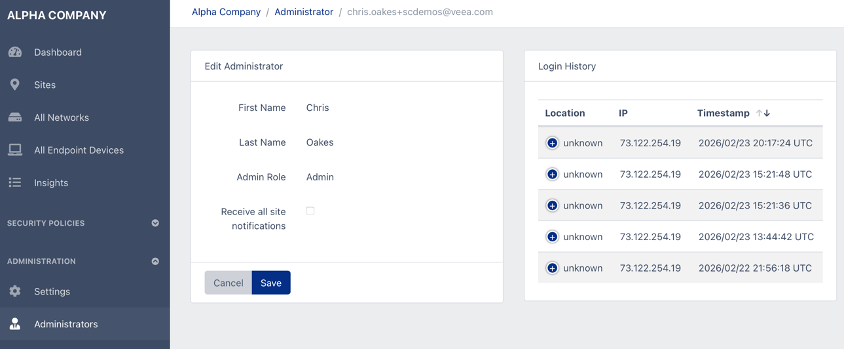

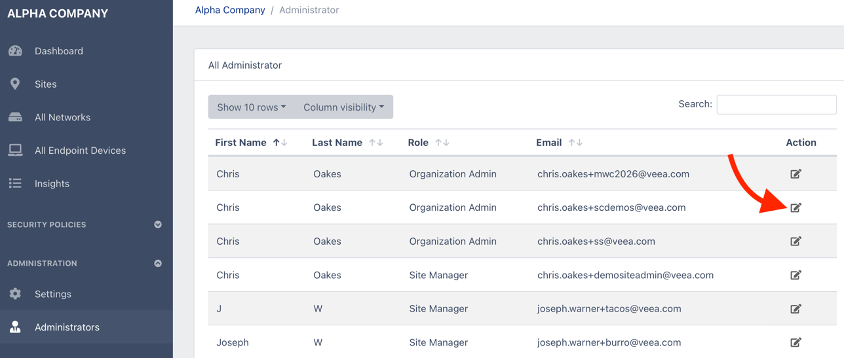

Selecting the action icon next to an individual Org Admin allows you to select for them to receive notifications and to view a list of sessions when they were logged into the system with their account.
Receiving Notifications
Usage Policies
Usage Policies let you control how much data each profile can use on a network. A usage policy sets a data limit for one or more profiles over a daily, weekly or monthly period, and defines what happens when that limit is reached: traffic can be blocked until the next period begins or, for the Guest Profile, reduced to a lower speed. You can also receive notifications when usage reaches a percentage of the limit.
Once a usage policy is assigned to a network, you can follow that network’s usage in real time, including how much of the limit each profile has used and whether it is within or over its limit.
Accessing Usage Policies
In the left-hand menu, expand Administration and click Settings.
On the Settings page, click the Usage Policy button.
You can also reach this page from the left-hand menu by expanding Networks and clicking Usage Policies.
All Usage Policies
The All Usage Policies page shows all of your Organization’s usage policies by ID and name. From here you can:
- Create a new policy by clicking Add Policy in the upper right corner.
- Edit an existing policy by clicking the edit icon in the Manage column.
- Delete a policy with the trash icon.
Editing a Usage Policy
The Edit Usage Policy page shows the policy name and a Profiles table with each profile and its current data limit. Profiles with no limit show No limit. In the example below, the Guest Profile Usage Policy has a limit configured for the Guest Profile of 15 GB download and 10 GB upload per day per network, reduces speed to 80 Mbps download and 10 Mbps upload after reaching the limit, and sends a notification at 85%.
To modify a policy:
- Enter or update the policy name in the Name field.
- Click the edit icon in the Actions column for the profile you want to configure.
- When you’re done configuring profiles, click Save to save the policy, or Cancel to discard your changes.
Configuring a Profile’s Data Limit
Clicking a profile’s edit icon opens its Bandwidth Management settings. The example below shows the Guest Profile settings from the policy above.
The available settings are:
| Setting | Description |
|---|---|
| Data Limit | Turns the data limit on or off for this profile. When on, it limits how much data the profile can use per network in each period. Off by default. |
| Limit Period | How often the limit resets: daily, weekly or monthly. The page shows when usage resets (for a daily limit, every day at 0:00). |
| Limit Amount | The per-network limit, in GB, set separately for Download and Upload. Leave a field blank for no limit in that direction. |
| When the limit is reached | What happens once the limit is reached: Block all traffic (default) or, for the Guest Profile only, Reduce speed. |
| Usage Notification | Turns usage notifications on or off. |
| Notify when usage reaches (% of limit) | The percentage of the limit that triggers a notification, based on whichever of the download or upload limits is reached first. |
| Also notify when the limit is reached | Sends an additional notification when the limit is reached. |
If you choose Reduce speed, enter the reduced download and upload speeds in Mbps. Guest Profile endpoints stay online at the reduced speed until the next period begins.
Note: The maximum download speed allowed is 80 Mbps.
Note: Reducing speed after reaching the limit is only available for the Guest Profile. For all other profiles, traffic is blocked once the limit is reached, until the next period begins.
Click Save to apply the profile settings and return to the policy.
Viewing Usage Policies by Network
To see which networks have a usage policy assigned, click All Networks in the left-hand menu. The Usage Policy column shows the policy assigned to each network, or None if there isn’t one. The Secure and Common columns show the data limits that apply to those profiles on each network.
To view a network’s usage in real time, click the live view (gauge) icon in the Action column.
Network Live View
The network live view shows the assigned usage policy and, for each profile:
- Usage this period: data downloaded and uploaded so far in the current period. For profiles with a limit, it also shows the limit and the percentage used, with a progress bar for each direction.
- Status: whether the profile is within its limit (Within limit), has reached it and is blocked or speed-reduced, or has no limit (No limit). For profiles with a limit, it also shows when usage resets.
To change this network’s usage policy directly from this page, click Edit Usage Policy in the upper right corner of the Usage panel.
Secure DNS
Before an endpoint can reach a website or service, it has to look up that domain’s IP address. This lookup is called DNS. Standard DNS lookups travel in plain text, which lets SecureConnect content filtering see each lookup and apply its filtering rules, such as blocking known malicious domains or restricted categories.
Secure DNS encrypts that lookup using DNS over HTTPS (DoH) or DNS over TLS (DoT). This is useful for privacy in general, but it also hides the lookup from content filtering. As a result, an endpoint using Secure DNS can bypass your content filtering rules, whether because a user turned it on on purpose or because a browser or operating system enabled it on its own.
The Secure DNS setting in SecureConnect lets you decide whether endpoints in your Organization can use Secure DNS. Blocking it blocks most of this traffic to endpoints in order to better protect your environment.
Example: Secure DNS Enabled in a Browser
Most modern browsers include a Secure DNS option. In Google Chrome, for example, it is found under Settings > Privacy and security > Security. Scrolling down to Use secure DNS shows the toggle and the selected DNS provider (Cloudflare 1.1.1.1 in the example below). With this option turned on, the browser’s DNS lookups are encrypted and are not visible to SecureConnect content filtering, unless Secure DNS is blocked.
Accessing Secure DNS Settings
In the left-hand menu, expand Administration and click Settings.
On the Settings page, click the Secure DNS Settings button.
Secure DNS Settings Page
The Secure DNS page opens with a brief explanation of the feature, followed by two configuration areas: the Organization Default and Custom Endpoint Settings.
Organization Default
The Organization Default applies to all endpoints in the Organization unless a custom endpoint setting overrides it. New endpoints that join the network also follow this value.
The current value is shown on the right (Allow Secure DNS in the example above). To change it, click the edit icon next to the value and choose one of the following options:
- Allow Secure DNS: endpoints can use encrypted DNS. Their DNS lookups will not be visible to content filtering.
- Block Secure DNS: encrypted DNS attempts are blocked, so most endpoints fall back to standard DNS and content filtering applies normally.
Custom Endpoint Settings
Use Custom Endpoint Settings to create exceptions to the Organization Default for individual endpoints. Endpoints listed here use the selected setting, regardless of the Organization Default.
To add an exception:
- Select the endpoint from the Select an endpoint… dropdown.
- Choose Allow Secure DNS or Block Secure DNS from the dropdown on the right.
- Click + Add.
Each exception appears in the table below with the endpoint name, its MAC address and its Secure DNS setting. Use the edit icon to change an endpoint’s setting or the trash icon to remove it. Removing an endpoint from this list returns it to the Organization Default.
Typical Configurations
| Goal | Organization Default | Custom Endpoint Settings |
|---|---|---|
| Enforce content filtering on all endpoints, with a few exceptions | Block Secure DNS | Add Allow Secure DNS for each endpoint that truly requires encrypted DNS |
| Keep Secure DNS available, but enforce filtering on specific devices | Allow Secure DNS | Add Block Secure DNS for each endpoint where filtering must be enforced (for example, shared or kiosk-type devices) |
Note: No endpoint that is allowed to use Secure DNS is covered by DNS-based content filtering. Keep the list of Allow Secure DNS exceptions as short as possible when content filtering is a requirement.
Viewing Secure DNS Block Events
To see which endpoints have tried to use Secure DNS while it is blocked, click the View Events button in the upper right corner of the Secure DNS page.
The Secure DNS Block Events table shows the following for each event:
- Date/Time: when the attempt was blocked.
- Endpoint and Endpoint MAC: the device that made the attempt.
- Network: the network the endpoint was connected to.
- Domain (DoH) / IP (DoT): the Secure DNS server the endpoint tried to reach: a domain name for DNS over HTTPS or an IP address for DNS over TLS.
Block events are useful for identifying endpoints that may need an exception, or for confirming that a browser or device has stopped trying to use Secure DNS. To return to the Secure DNS settings, click Secure DNS Settings in the upper right corner.
Data Export
The Data Export page lets administrators download usage data for their Organization as CSV files. Select a date and time range of up to 30 days, then choose “Download Device Usage CSV” to export information about connected devices and their usage, or “Download Application Usage CSV” to export information about applications that were in use.
Exported files can be opened in any spreadsheet tool for reporting, audits or further analysis.
Here is an example of the format of an exported report:
Insights
Insights provides powerful views for SecureConnect Administrators (at both the Operator and Organization Admin levels)
- Provides detailed views into bandwidth usage
- Devices and device bandwidth
- Protocols used
- Applications and bandwidth consumption
- Many other views network wide or site specific, that can be used for customer care and system management
You can access Insights from the lefthand pane from any menu within SecureConnect.
After selecting “Insights”, you will be prompted to choose a Site (location).
Site vs. Organization View
When you arrive in Insights, you’ll see all of the data and dashboards for the Site you selected. If you want to switch Sites, you can do so using the dropdown selector in the upper right corner.
You can switch back and forth between the Organization View and the Site View in the top menu bar. The Organization view offers Insights categories across all of your Sites together. These are aggregated views across your entire Organization.
Site Dashboard

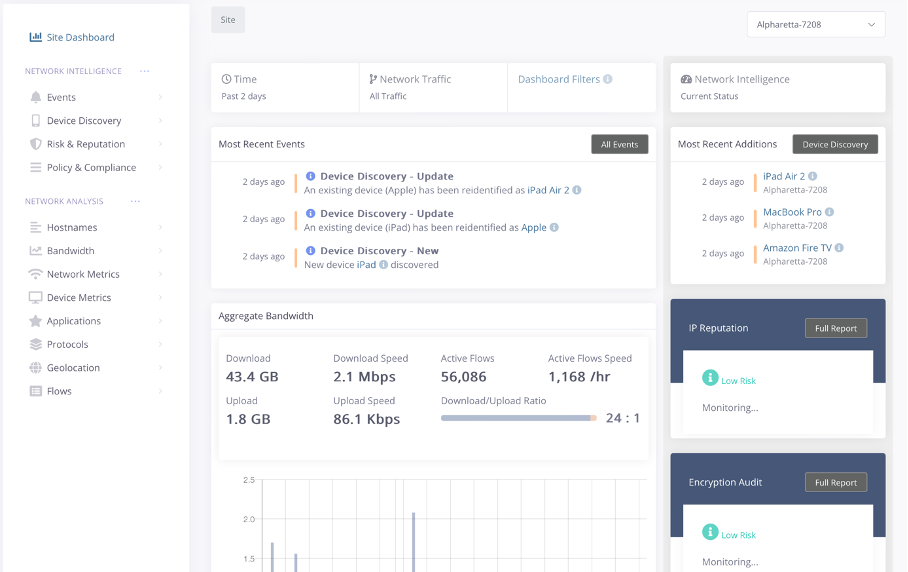

On this Site Dashboard landing page, you’ll see Site-level dashboards for:
- Recent Events
- Recent Connected Devices
- Aggregate Bandwidth
- Top Known DNS Domains
- Top Device MACs
- Top Applications by Bandwidth
- Top Protocols Used
- Top Countries
- IP Reputation
- Encryption Audit
- Insecure Protocols
- Cryptocurrency Detection
- VPN Detection
- Tor Detection
- Unencrypted Password Use
You can also view Insights across all the Sites (locations) in an Organization. Please refer to the “Insights Organization View” section of this document for more information.
Each element can be clicked into for expanded reporting and its own dashboard view. For instance, here’s a view of the Geolocation Dashboard:

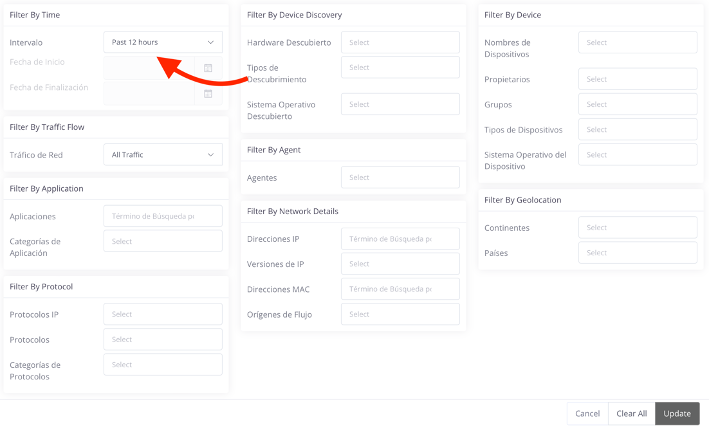

In the upper right corner, you can select “Filters”, which displays a menu with several categories for filtering data. Below, we’ve highlighted a time range filter, which is available for many of the sections.
Events
In the Events section are two options – Event Log and Subscribe.

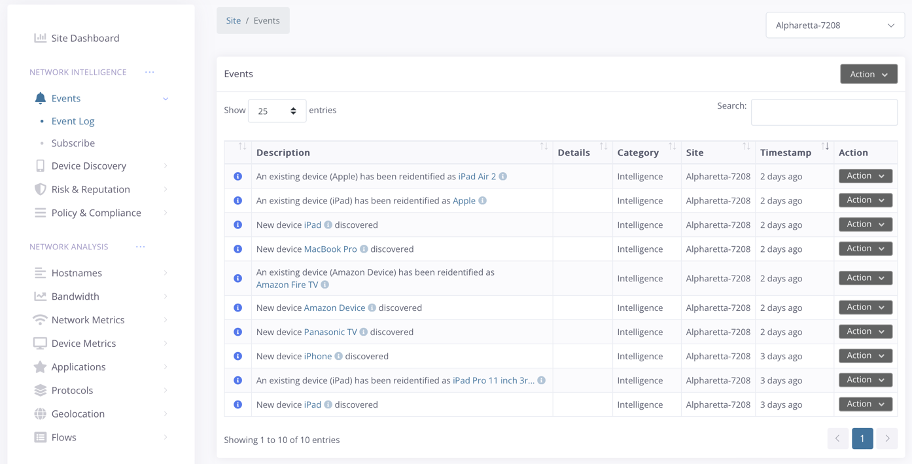

The Event Log shows a description of the event, the category it falls under, a timestamp for when it occurred and an Action button to the right to acknowledge the event.
The Subscribe Menu lets you enable logs and email and mobile notifications by category.
Device Discovery
The Device Discovery section provides all the relevant information on devices connected into the network – both local and external.

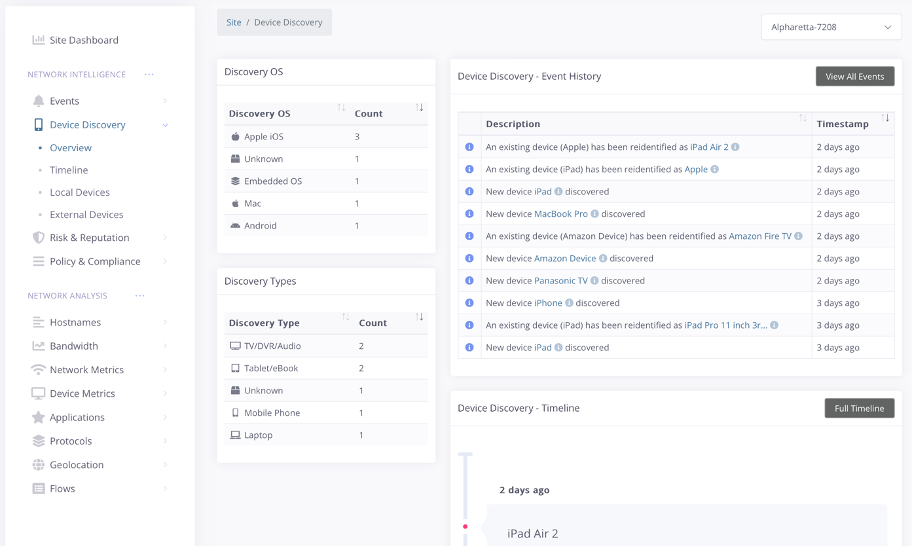

The Overview page shows a dashboard of device types and operating systems connected to the network, device events and a timeline of device activity.

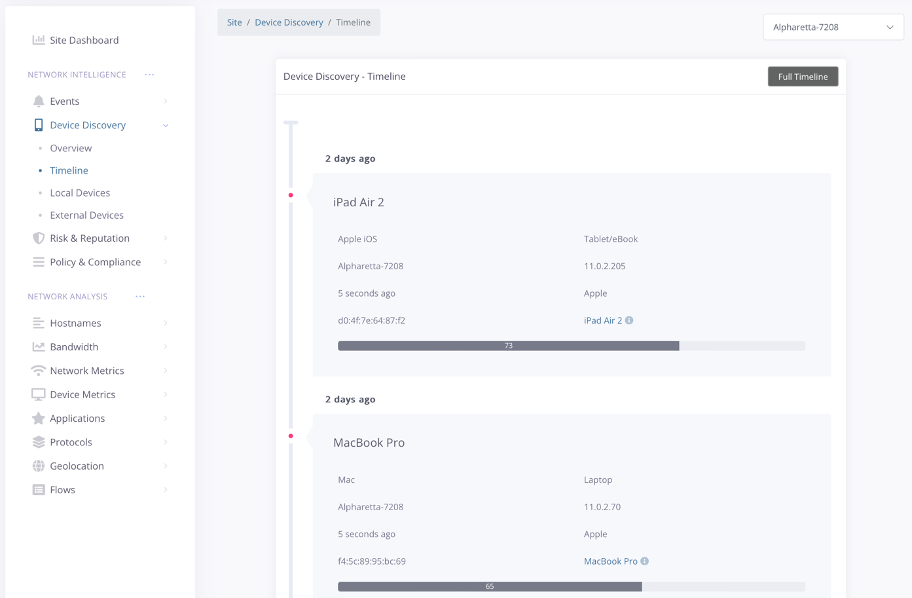

The Timeline page shows time-based information around device discovery.
The Local and External Device pages show a discovery list of all connected devices including:
- Device type
- Device OS
- MAC address
- Recent IP address
- Last seen status
You can also export a device inventory as shown in the image below.

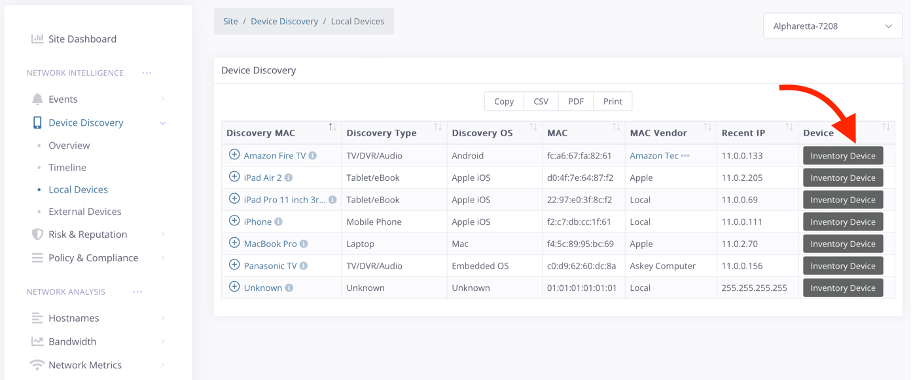

Clicking on the “Inventory Device” button to the right allows you to manually enter a device name and assign it to an owner, group and OS.
Risk and Reputation
The Risk and Reputation section allows you to dive into IP reputation, Cryptocurrency traffic, Encrypted traffic, Insecure protocols, Unencrypted passwords, and anomaly detection.

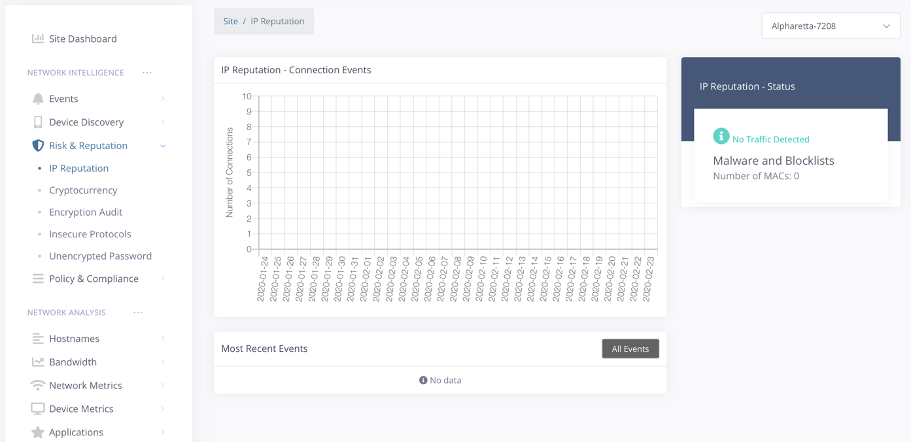

The IP Reputation page shows a dashboard of traffic deemed to be high risk.

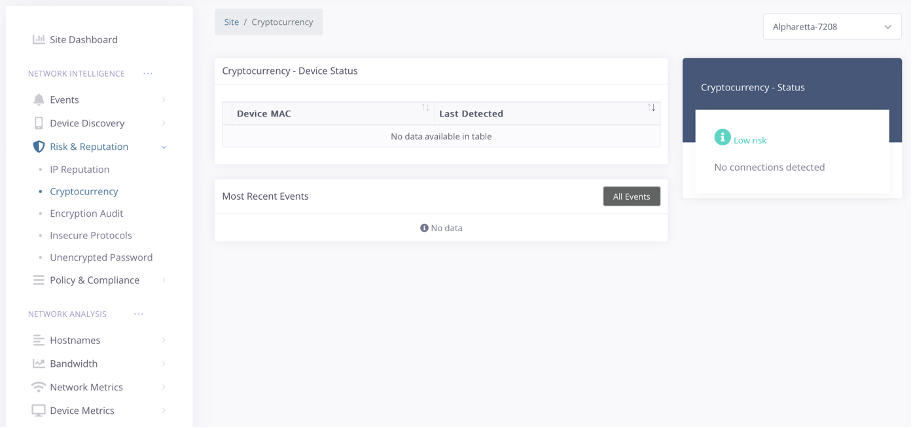

The Cryptocurrency page identifies devices associated with known cryptocurrency nodes.

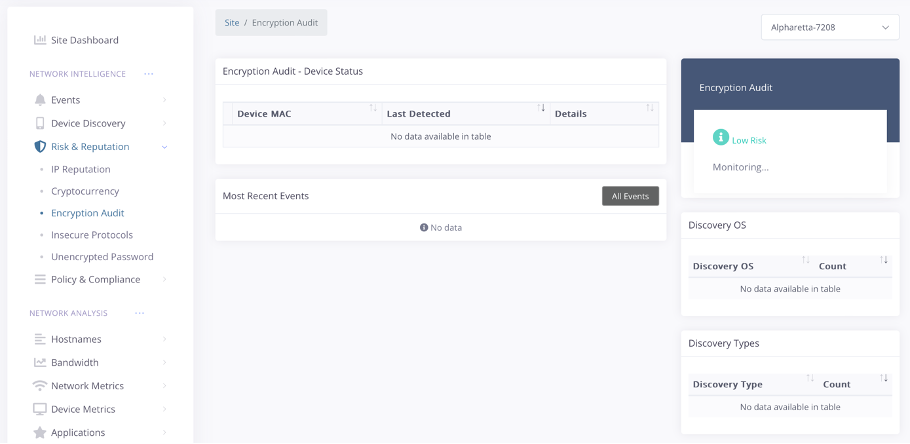

The Encryption Audit page shows a dashboard focused on encrypted traffic on the network.

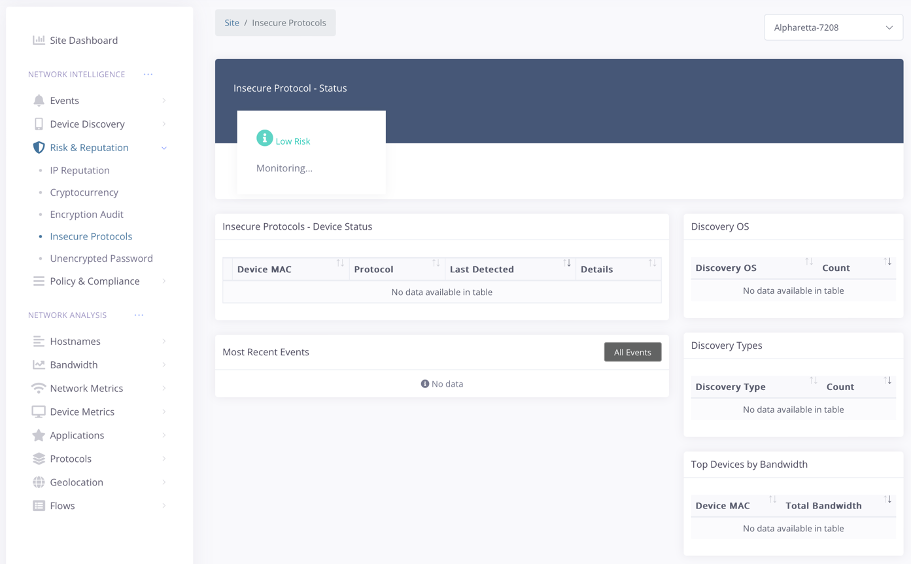

The Insecure Protocols page shows a dashboard of insecure protocols in use over the network.
The Unencrypted Password page shows when unencrypted passwords are in use over the network.
Policy and Compliance
The Policy and Compliance section shows insight into the use of Servers, VPN and Tor over the network.

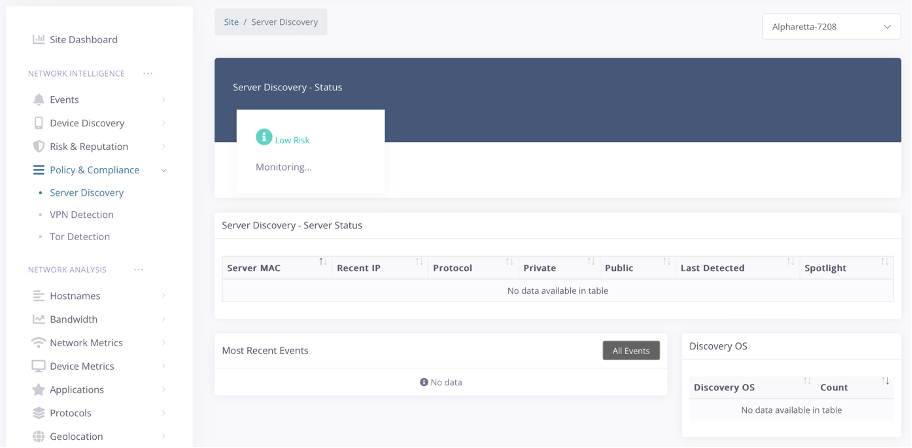

Server Discovery Page / Dashboard

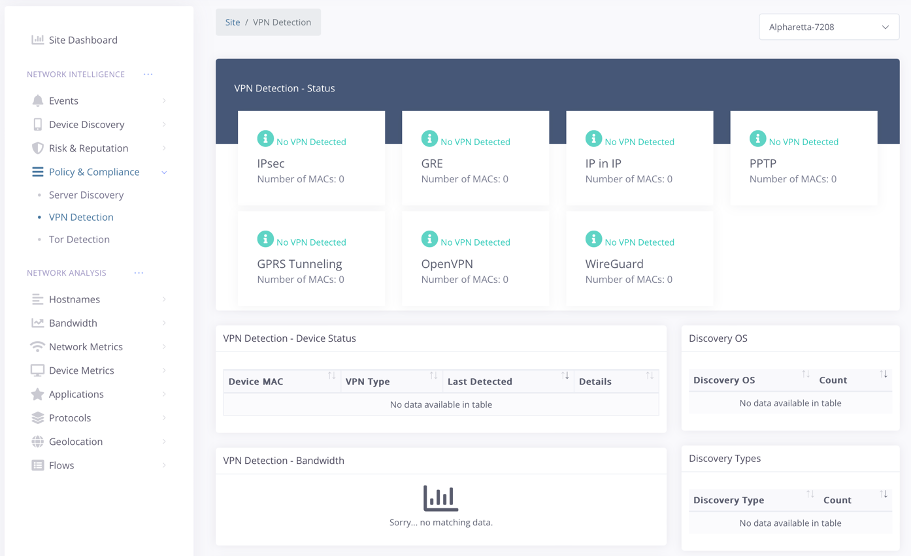

VPN Detection Page / Dashboard

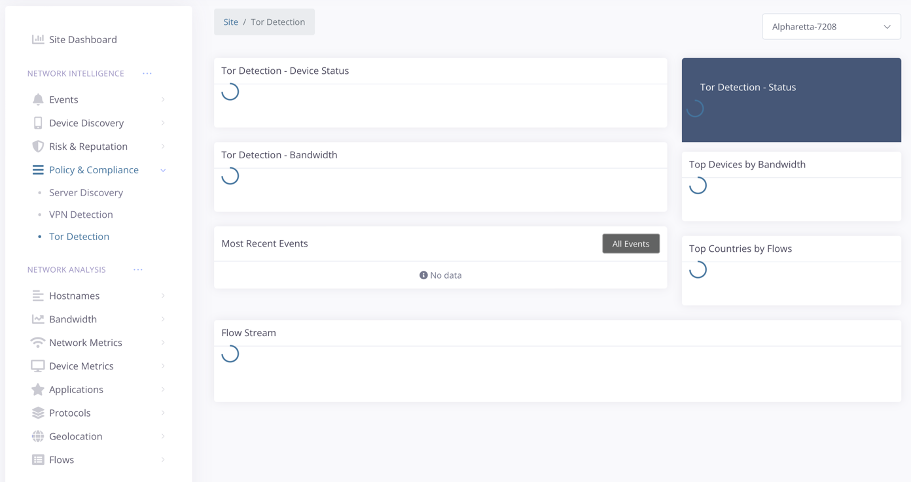

Tor Detection Page / Dashboard
Hostnames
In the Hostnames section, you will find dashboards and insights into the domains, DNS and DHCP information in use over the network.

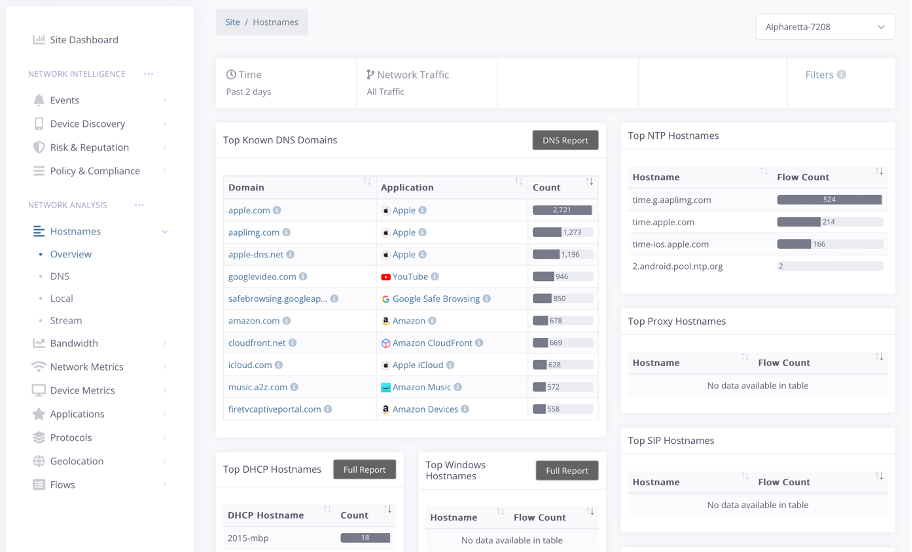

Here is an example of the Overview page:

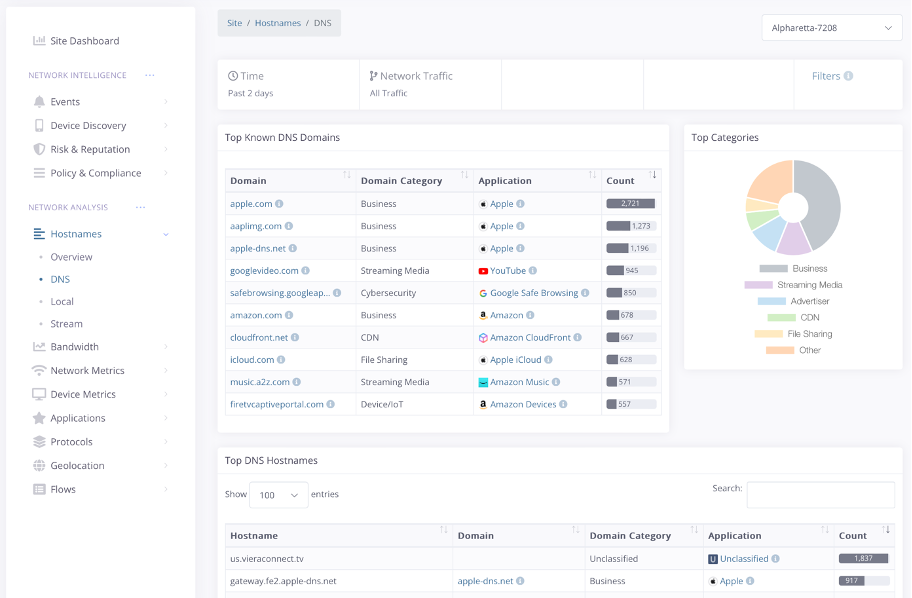

On the DNS page, you will see top known DNS domains as well as top DNS host names.

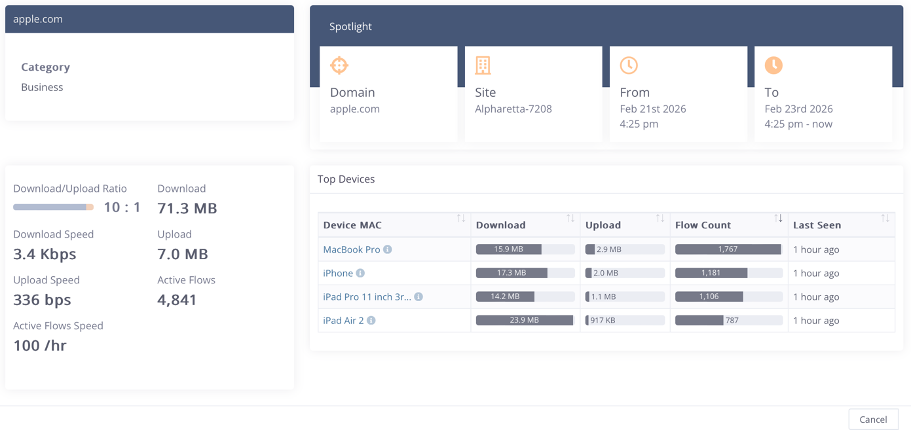

You can click into each entry for a detailed analysis card showing traffic and devices.

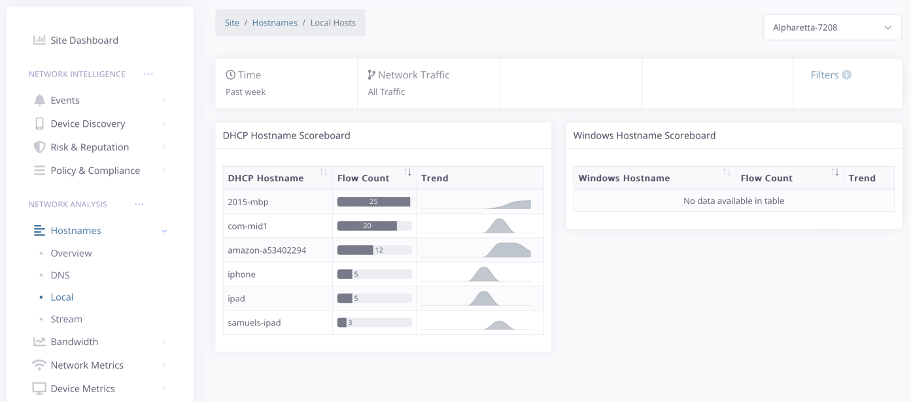

On the Local page, there is a Hostname scoring table, showing top traffic by device type.

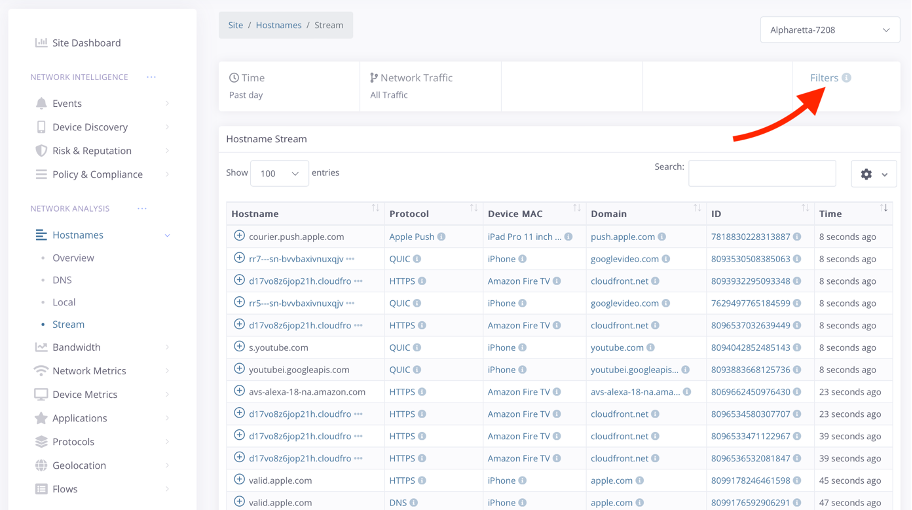

On the Stream page, you will see Hostnames mapped to the protocol they connected over, the domain they connected to and the time at which they connected. Note that you will need to click on “Filters” in the upper right and set the time interval for 24 hours or less to generate data for this page.
Bandwidth
In the Bandwidth section, you can access insights into the top consumers of data across the network including the amount of data consumed by web site, service and application type.

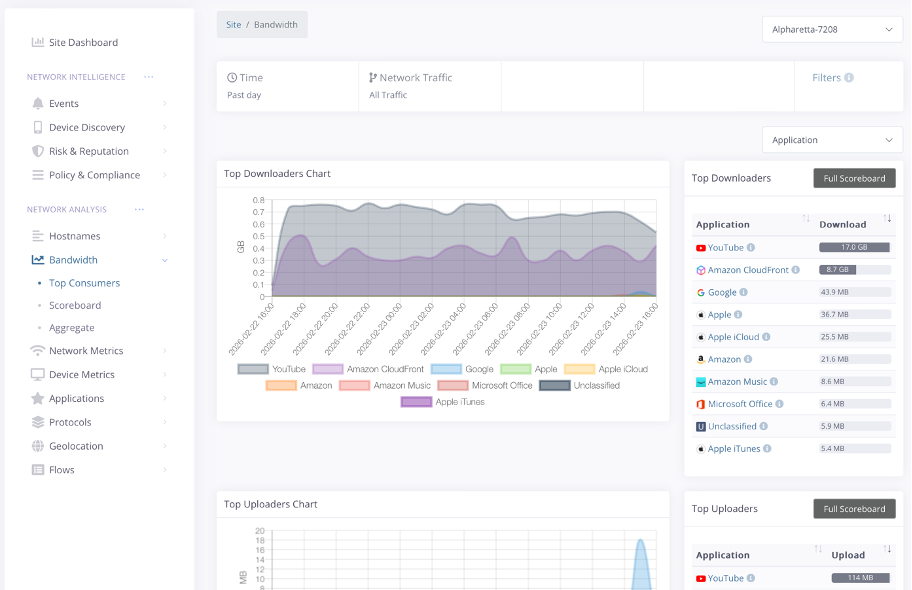

On the Top Consumers page, you will see a dashboard showing data consumed by web sites and services used by devices connecting to the network. You can adjust the time range by clicking on the Filters icon at the upper right.

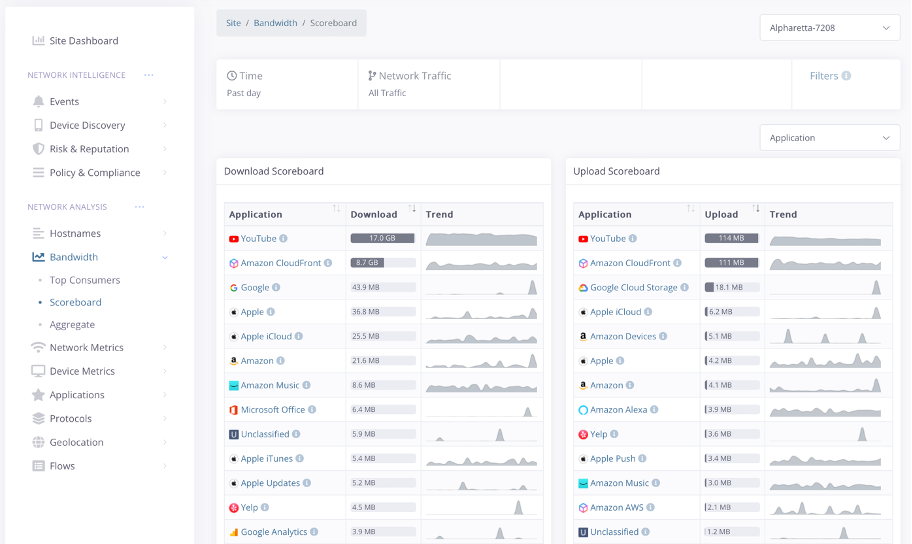

On the Scoreboard page, you’ll find charts showing listings of applications across upload and download consumption.

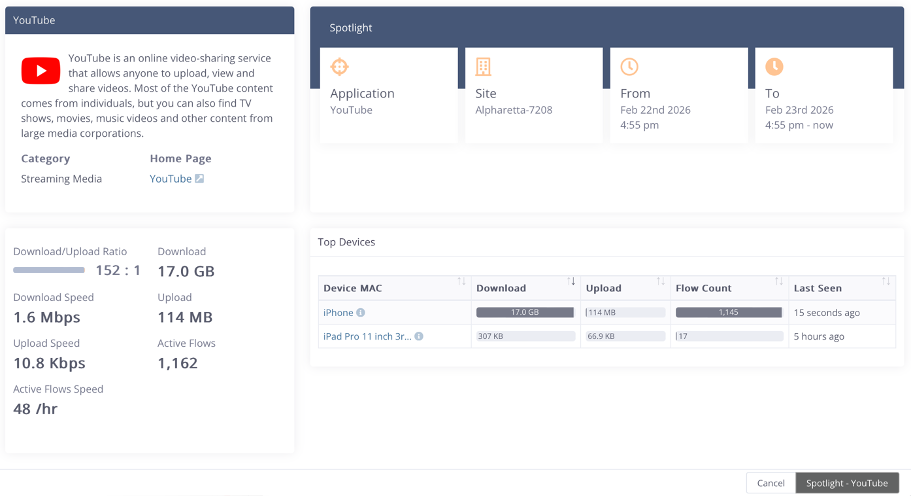

You can click into each entry to view a detailed card for that particular application.

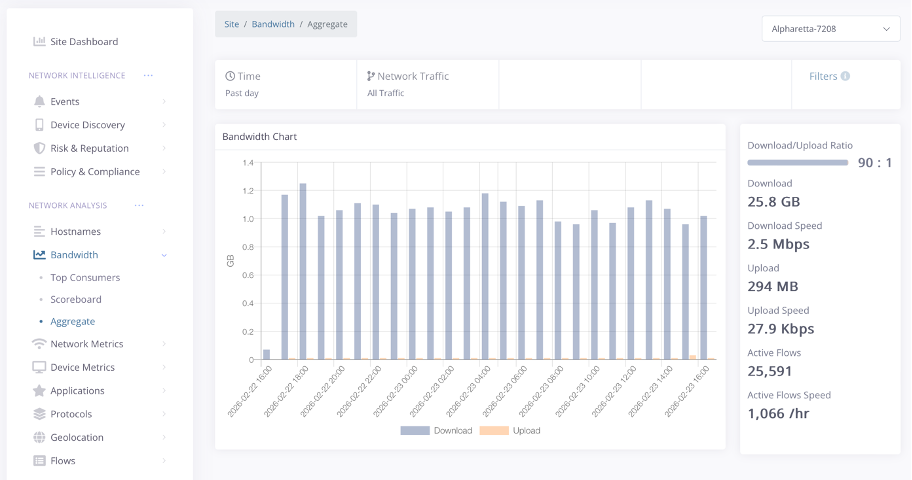

On the Aggregate page, you’ll see a bandwidth chart by day for uploaded and downloaded data. You can also see a breakout of data consumed and average network speed across the time period selected.
Network Metrics
The Network Metrics section provides insight into traffic by network protocol and by IP address.

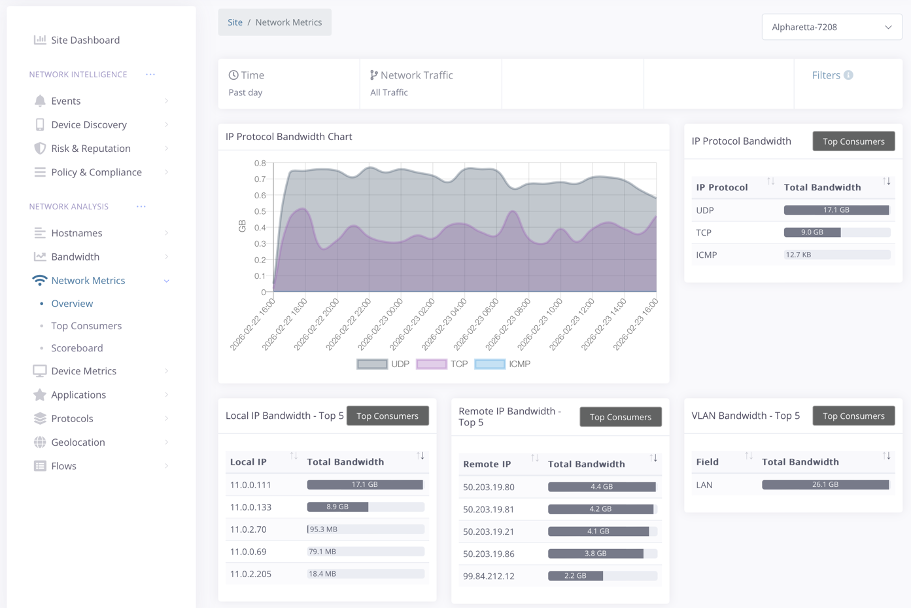

On the Overview page, you find a dashboard showing network traffic by protocol over the time period selected. You will also see the IP addresses ranked by amount of data consumed.

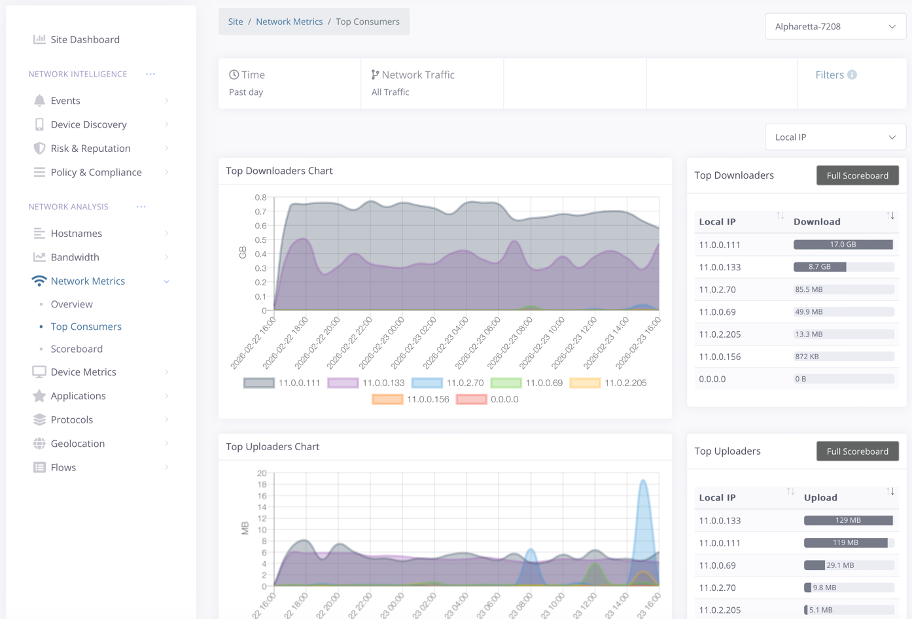

On the Top Consumers page, you will see charts and tables showing the top data consumers by IP address over a period of time. You can adjust the time range by clicking on the Filters icon at the upper right.

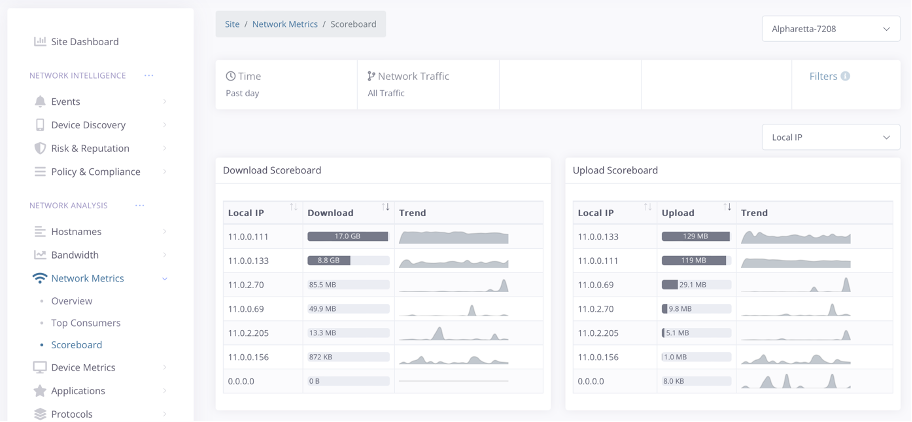

The Scoreboard page shows upload and download tables of data use by IP address.
Device Metrics
The Device Metrics section provides device-level details for data used across the network.

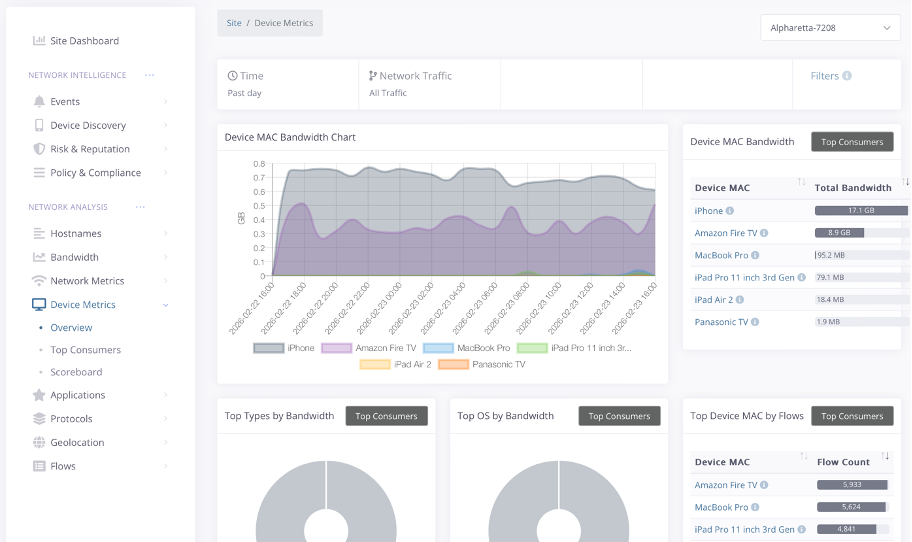

On the Overview page, you will see a dashboard view with charts and tables showing traffic by device.

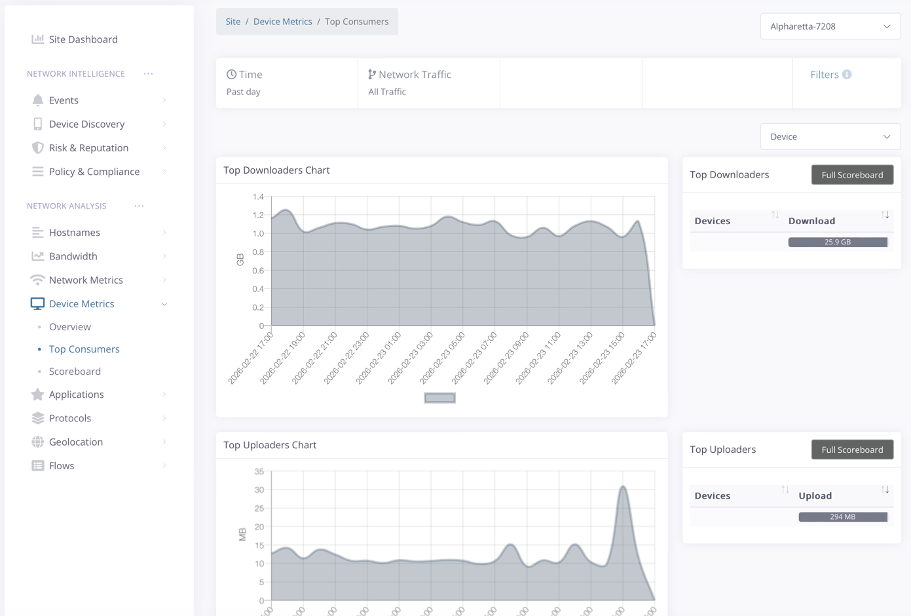

The Top Consumers page shows time-based data consumption broken out by uploading and downloading traffic.

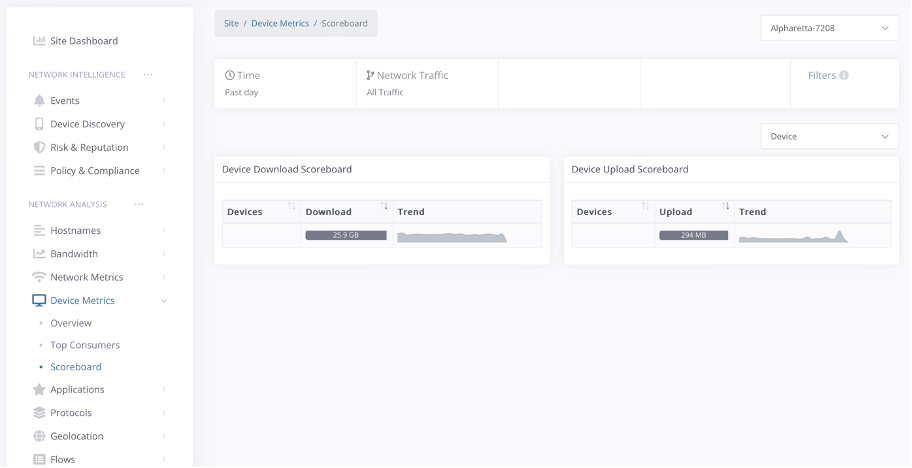

The Scoreboard page shows a trending view of the amount of data uploaded and downloaded across the network.
Applications
The Applications section provides analysis into applications, web sites and services that traffic in the network is connecting to.

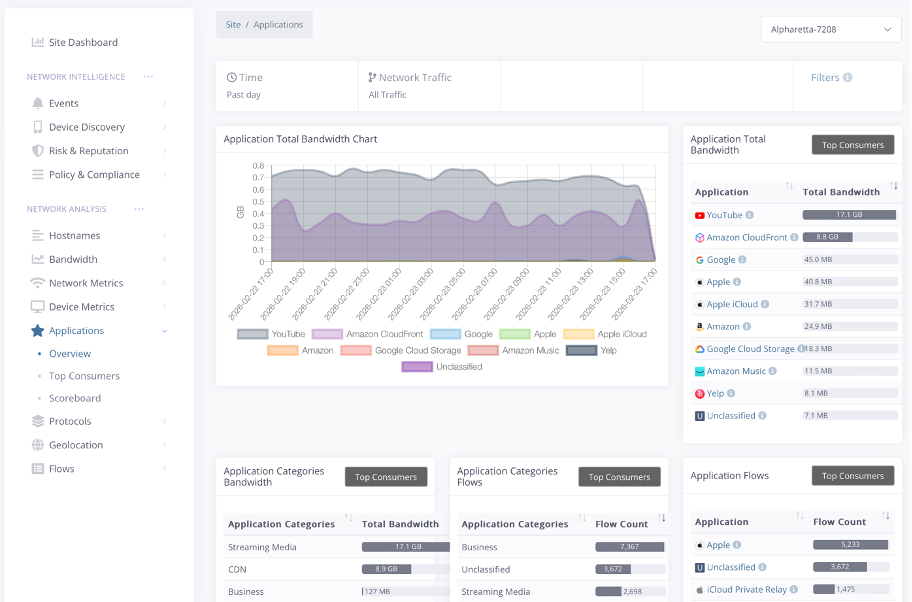

On the Overview page, there is a dashboard view of bandwidth by application and also by application category. You can adjust the time range by clicking on the Filters icon at the upper right.

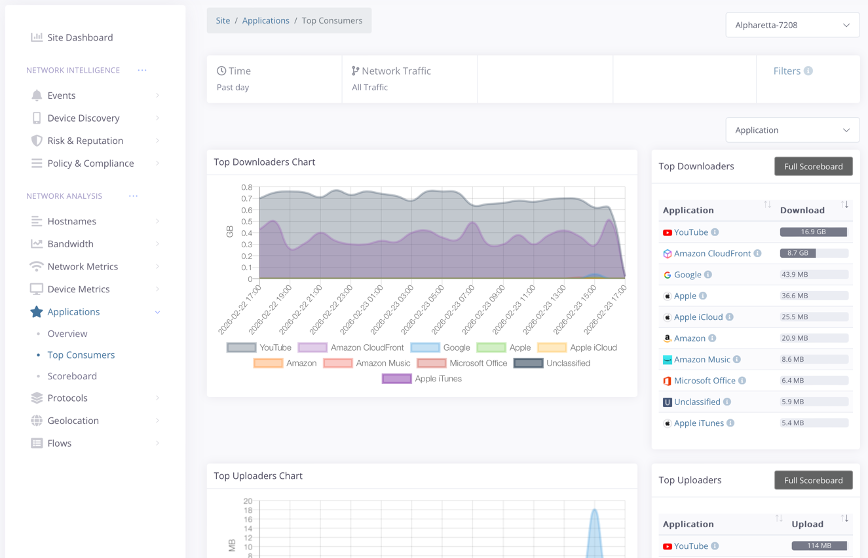

On the Top Consumers page, you will find detailed views on data uploaded and downloaded by application / service.

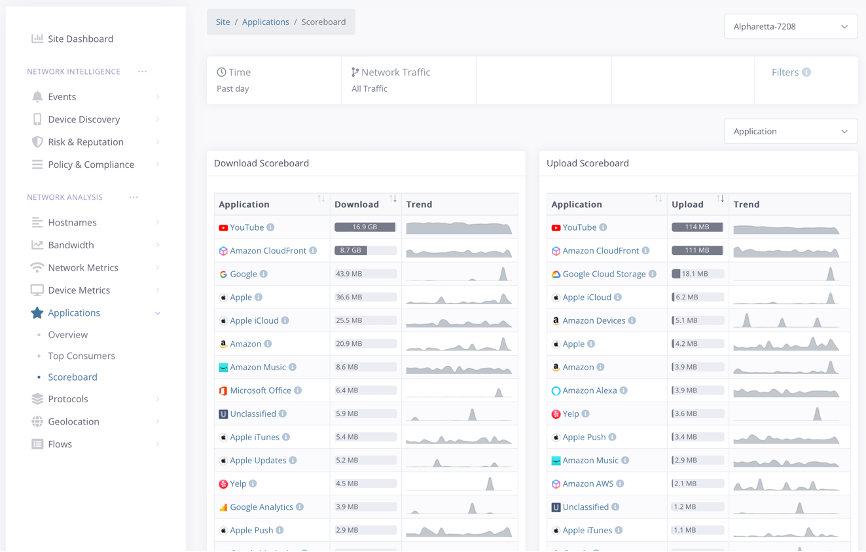

The Scoreboard page shows table views and trends of data used by application.
Protocols
The Protocols section provides a detailed look into the protocols being used across device connections on the network.

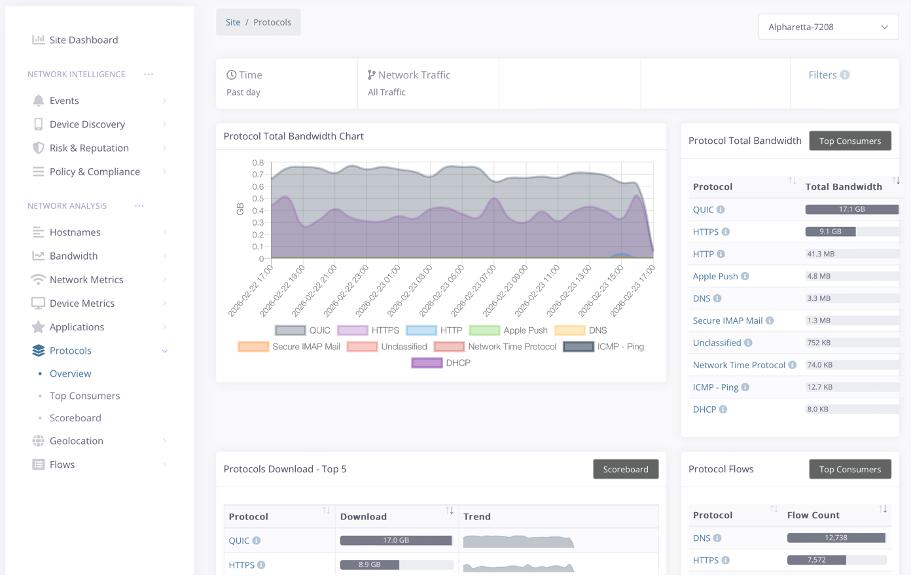

The Overview page shows a dashboard view of data use by protocol and is also broken into both upload and download traffic.
The Top Consumers page shows graph and table views of top uploaders and downloaders by protocol type.

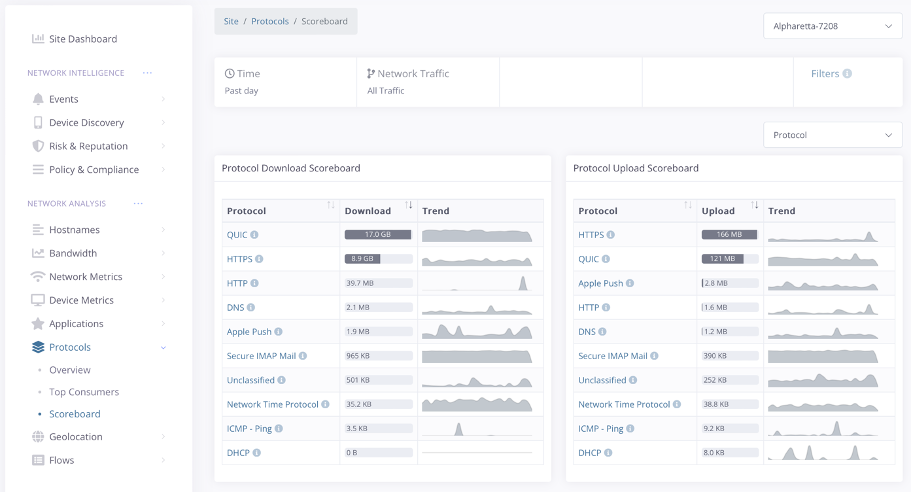

The Scoreboard page shows both a ranked view and trends of data consumption by protocol.
Geolocation
The Geolocation section shows network data consumption and flow by city, region and country.

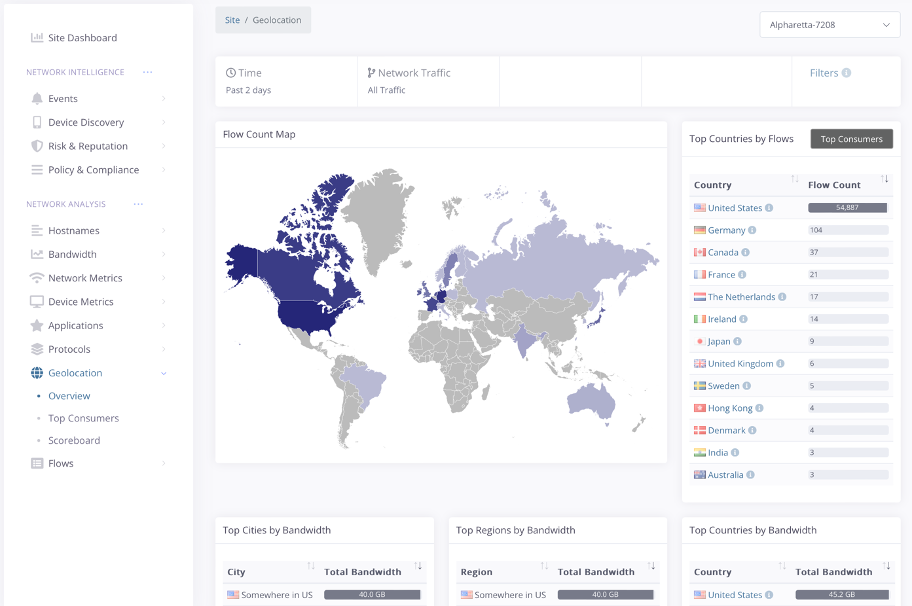

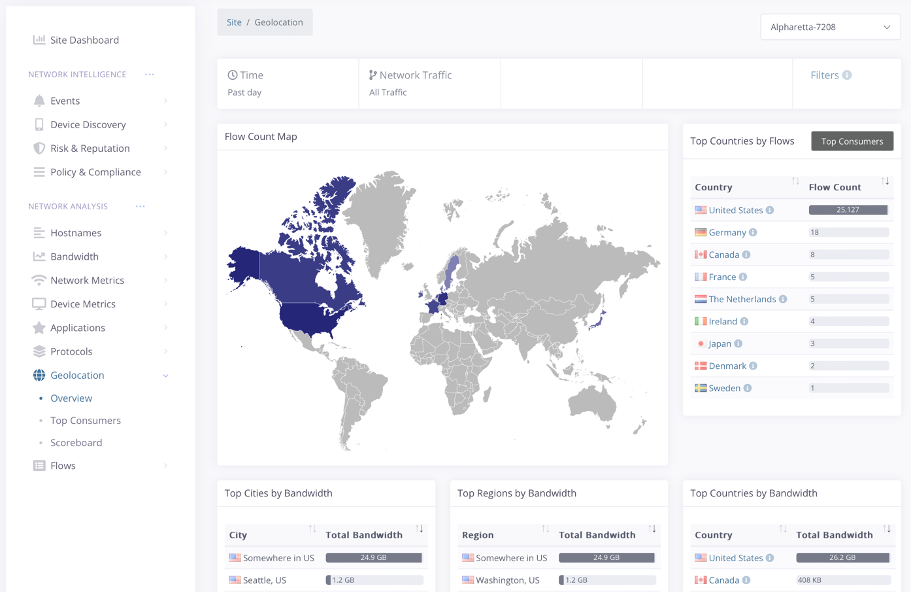

The Overview page shows a global dashboard view with breakout tables by location.

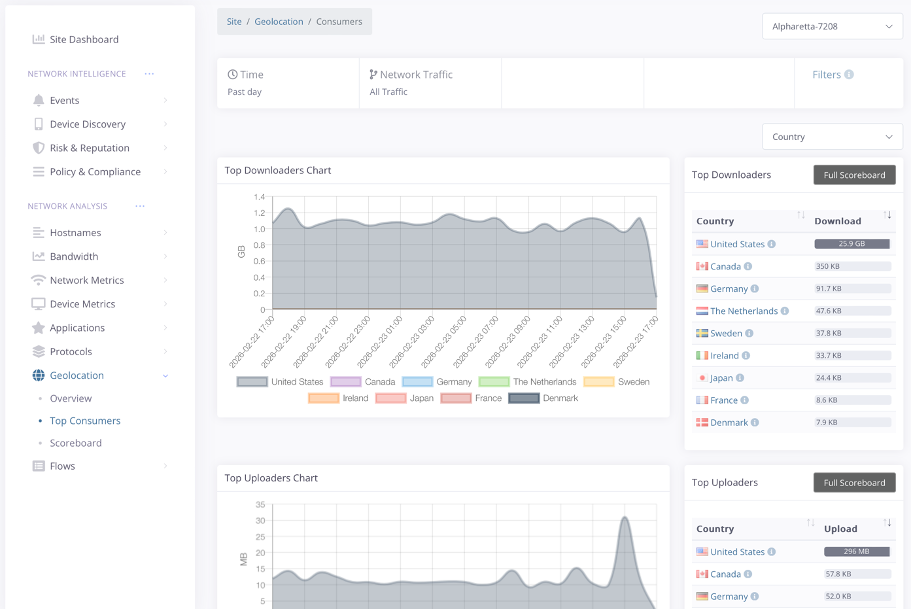

The Top Consumers page shows both upload and download traffic and data consumed by country.

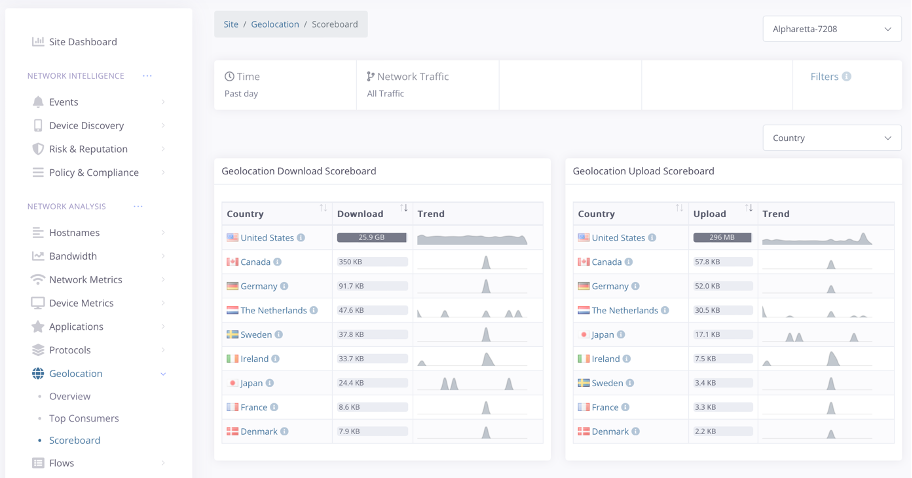

The Scoreboard page shows table views with trends for network data use by country.

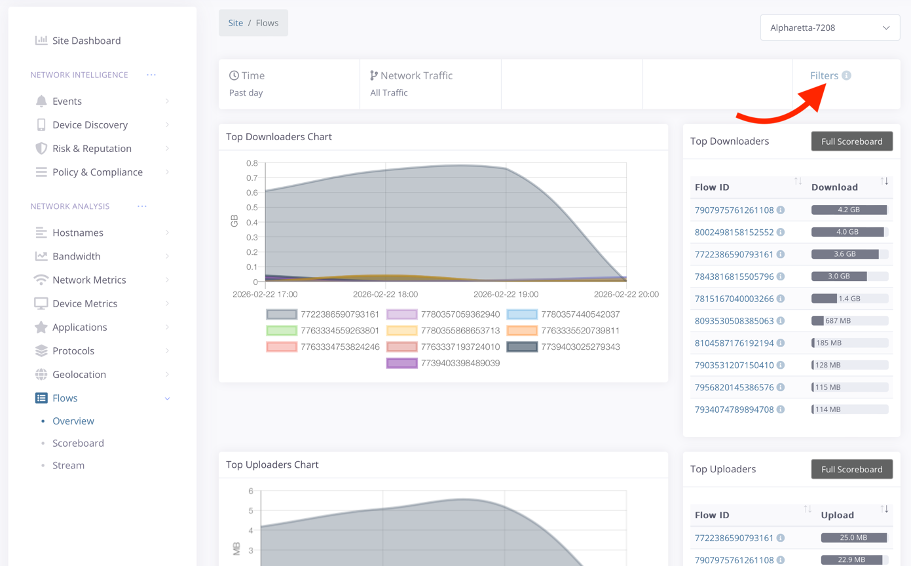

Flows
The Flows section shows traffic and data consumption by device ID.
The Overview page shows a dashboard view with consumption by device over time.
*Note that this data is available for time periods of 24 hours or less. To adjust the time period, click on the “Filters” link at the upper right.

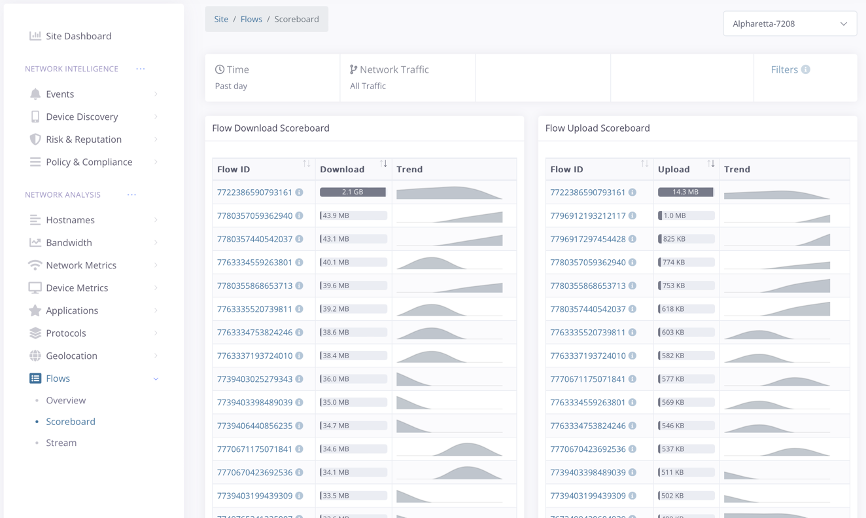

The Scoreboard page shows trends and both upload and download traffic by device flow.

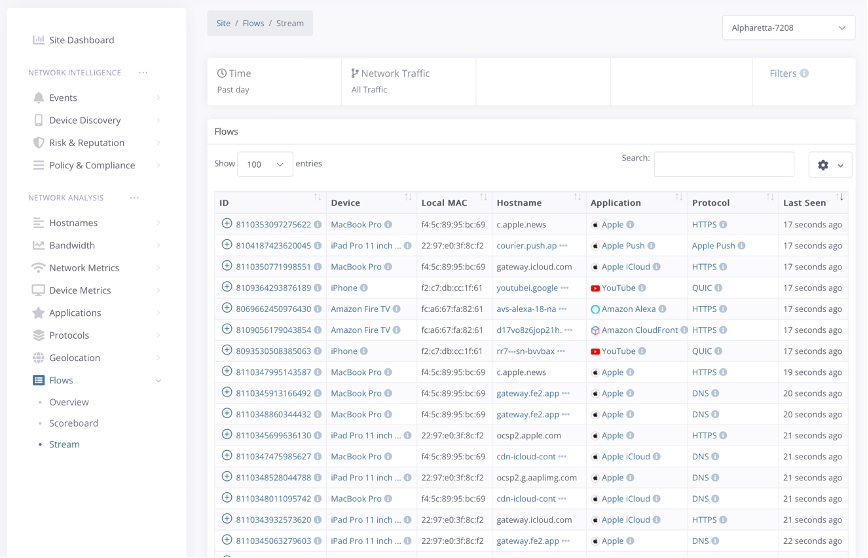

The Flows page shows a table view of device traffic on the network. This table includes Device ID, Device type, hostname, application connection, protocol, geolocation and time visited.
Insights Organization View
For Organizations with multiple Sites (locations), you can view aggregated statistics across all of the Organization’s Sites collectively.
Click on the Organization tab at the upper left and choose the Organization you want to view from the dropdown menu at the upper right.
Settings
My Account Menu
Click on the Settings menu to:
- Log out of your account
- Change your default language in Control Center
- Change your password
- View open sessions from your other devices
Password Reset
If you would like to update your password, select the “Change Password” link (as shown above). You will be asked to confirm your existing password and to enter your new password. Click on the Save button when finished.
Organization Admins Menu
In the Organization Admins section, you can add additional administrator accounts by selecting the button at the upper right.
