The VeeaHubs tab in Control Center provides a centralized dashboard for managing all your VeeaHubs within a selected mesh or organizational group. It includes tools to filter, search, and view detailed information for each node in your deployment.
Whether you’re overseeing a single hub or a large-scale multi-node network, the VeeaHubs interface helps you locate devices, monitor status, and access key management tools — all from one streamlined screen.

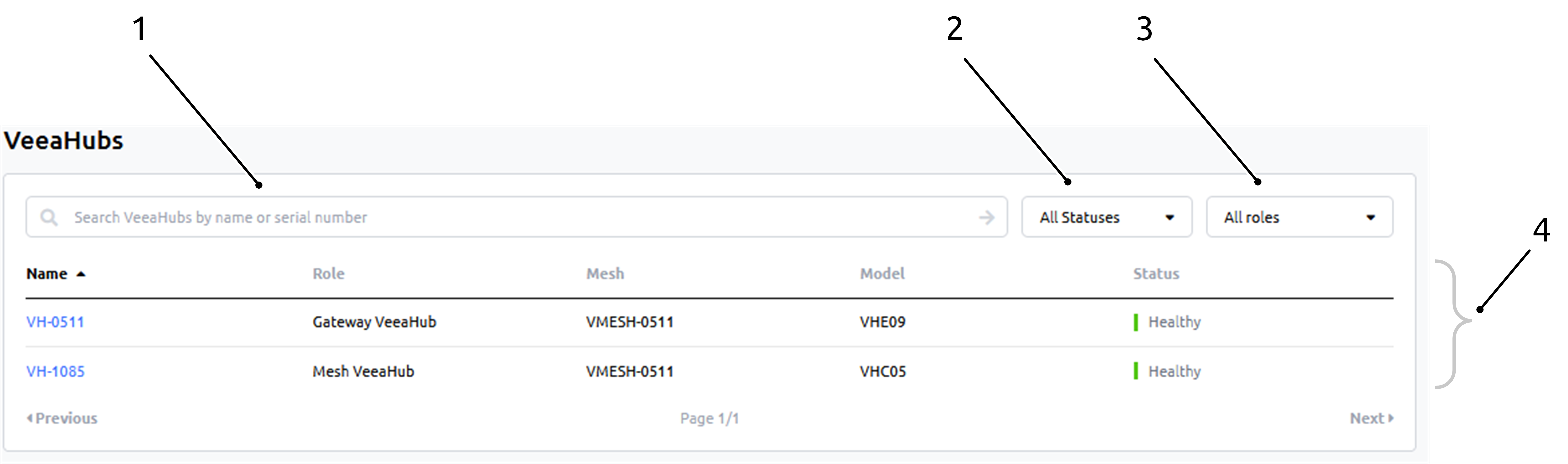

Key Interface Areas
| # | Title | Description | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Search Bar | Allows you to search for VeeaHubs in your account by name or serial number. This is an incremental search — entering part of the name or serial is sufficient to find matching entries. | ||||||||||
| 2 | Filter by Status |
Enables filtering VeeaHubs by operational condition. Available
statuses:
|
||||||||||
| 3 | Filter by Role |
Enables filtering by VeeaHub role:
|
||||||||||
| 4 | VeeaHub Table |
Displays all VeeaHubs in the current mesh. The table includes:
The table supports sorting by clicking column headers and paginates automatically when more than 10 rows are shown. |
Managing a VeeaHub
From the VeeaHub details page, you can perform the following actions:
- View system and health information
- Access associated Mesh and management page
- Launch VeeaHub Settings for configuration
- Restart, recover, or shut down the VeeaHub
- Unenroll a VeeaHub from the mesh
- View installed software versions
- Review event logs and status messages

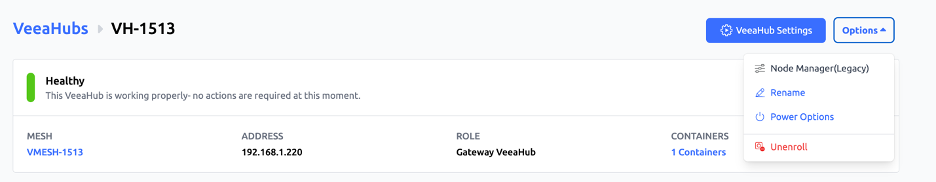

On the far left is the selected VeeaHub name.
On the right side are the three buttons for:
- VeeaHub Settings
- Options Menu with:
- Rename
- Unenroll
- Power Options.

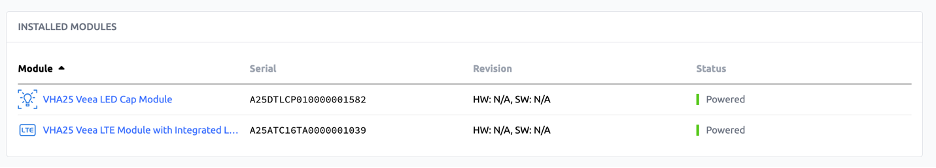

Installed Modules (VHC25 only)

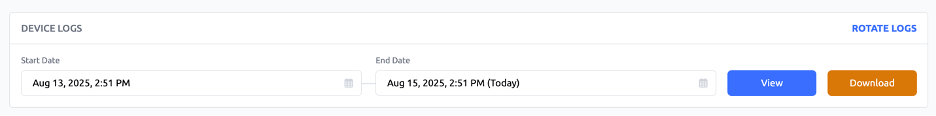

View and download Device Logs

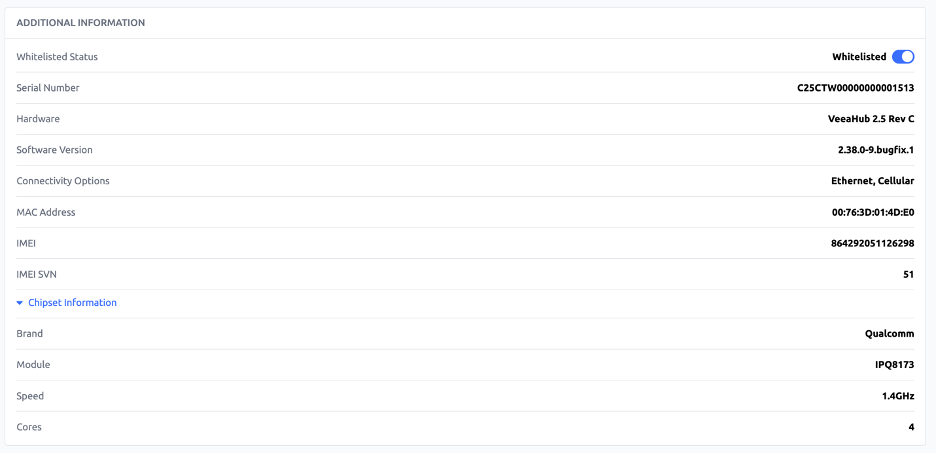

View device information, such as:
- Serial number
- IMEI
- Hardware and Software revisions
- Connectivity options

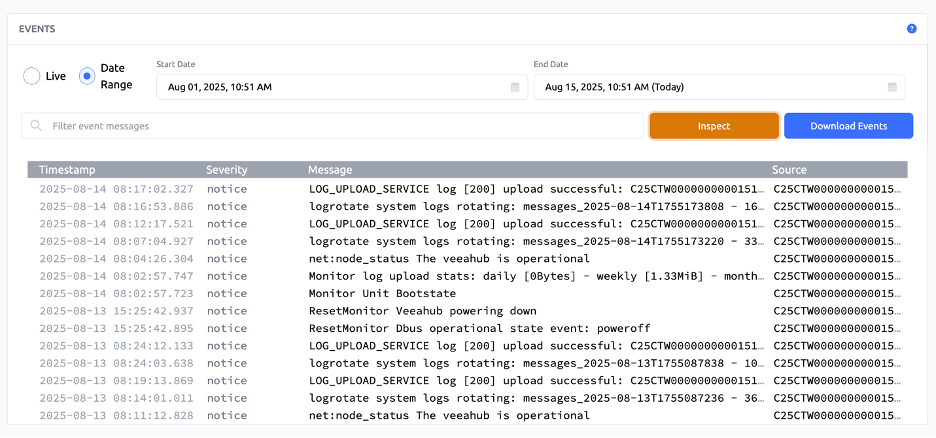

The events section provides an area to view, filter and download logged data about your Meshes and VeeaHubs.
You can select live or historic data respectively with the 'Live' and the 'Date Range' radio buttons.
When the date range option is selected, use the Start Date and End Date pop up calendars to select the required date range to view.
When event data is available, use the 'Filter event messages' and 'Inspect' button to refine your event view.
Use the 'Newer' and 'Older' buttons to move back and forward in time across the displayed event data.
Use the 'Download Events' button to download event information to your computer or mobile device as a Comma Separated Variable (CSV) file.
