The status lights on your VeeaHub depends on your VeeaHub model. This document shows the most common status light states, what they indicate and how you can solve any issues if they refer to one.
VHC25: VeeaHub STAX

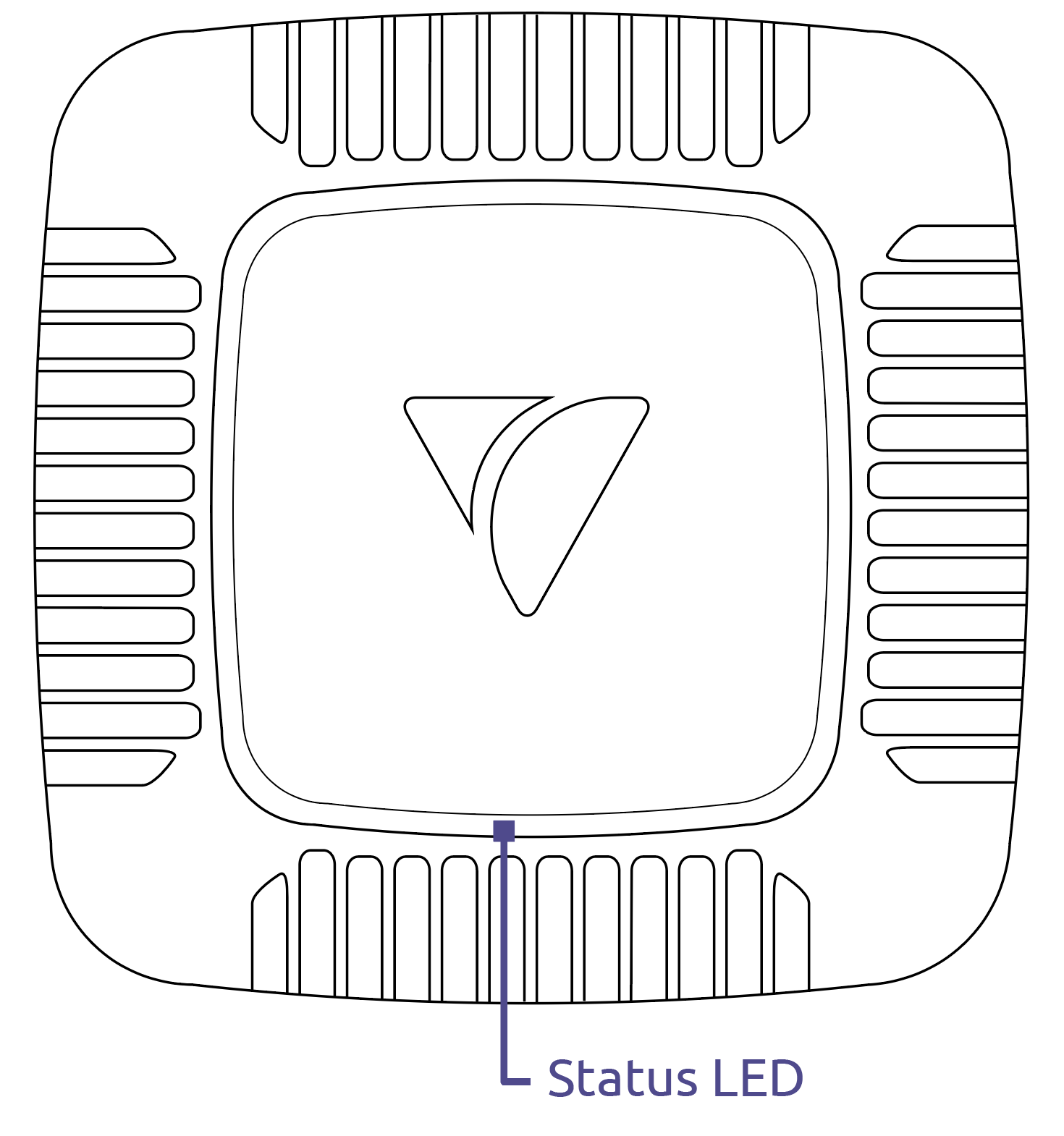

- The STATUS LED is on the top of the unit, surrounding the Veea logo.
| State | STATUS |
|---|---|
| Normal Operation | Solid BLUE |
| Booting | Green then CYAN |
| Error States | Varies |
- To check the status of your VeeaHub, use VeeaHub Manager or Control Center.
- The RESET button is located on the bottom of the unit.
- Press the RESET button for less than 5 seconds to reboot.
- Press the RESET button for 5 - 9 seconds to reset containers.
- Press the RESET button for more than 10 seconds to enter Recovery Mode.
VHC25-5G: VeeaHub STAX with 5G

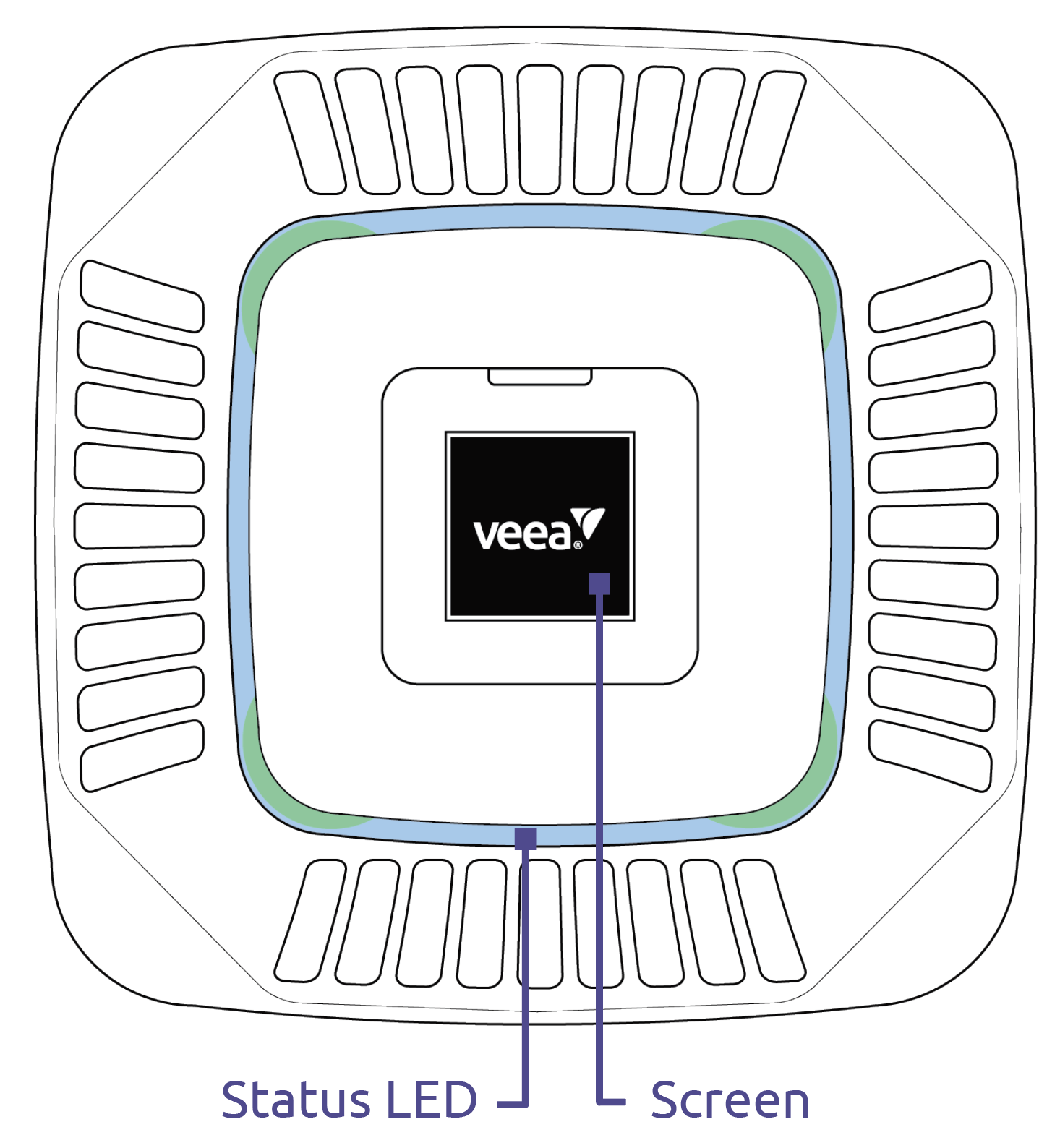

- 5G Model of VeeaHub STAX has a STATUS LED on top of the unit, surrounding the Veea Logo.
- The 5G Model also has an OLED display in the center. (OLED User Guide)
| State | STATUS |
OLED |
|---|---|---|
| Normal Operation | Solid BLUE |
Veea Logo shown |
| Booting | Green then CYAN |
|
| Error States | Varies |
- To check the status of your VeeaHub, use VeeaHub Manager or Control Center.
- For information about how to use the OLED screen, please click here.
- The RESET button is located on the bottom of the unit.
- Press the RESET button for less than 5 seconds to reboot.
- Press the RESET button for 5 - 9 seconds to reset containers.
- Press the RESET button for more than 10 seconds to enter Recovery Mode.
VHE09/VHE10: VeeaHub Pro
- The LOGO LED is on the top of the unit, surrounding the Veea logo.

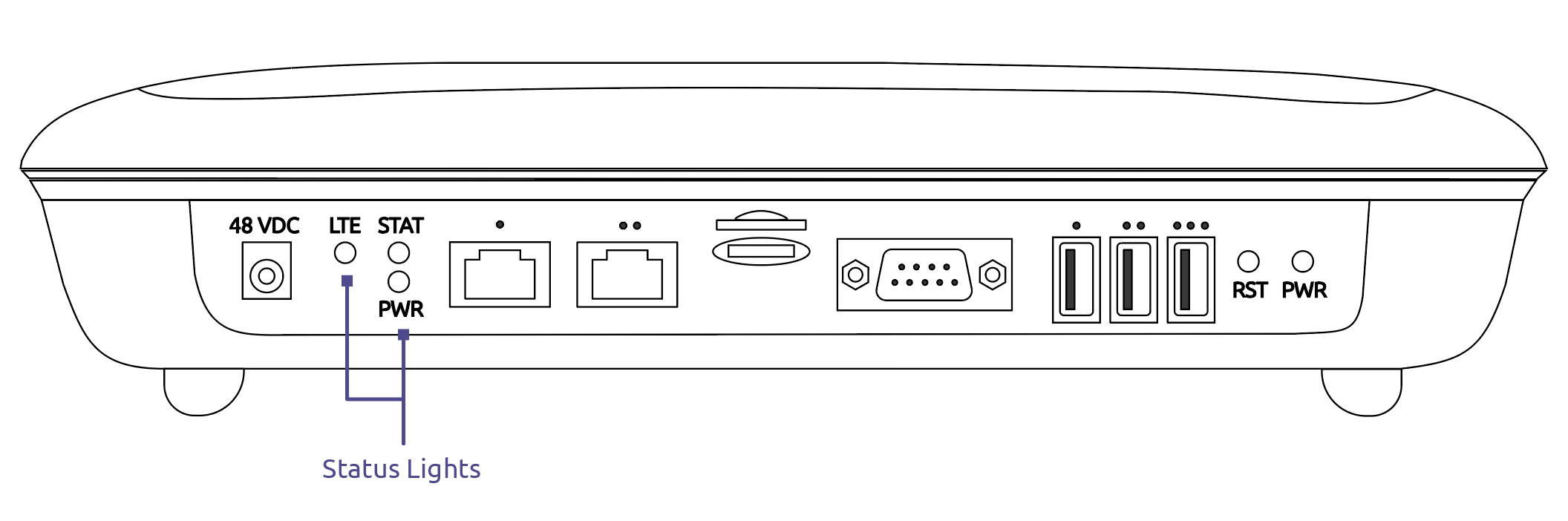

- The STATUS and POWER LEDs are located next to the ports on the back of the unit.
- LEDs can be Green or Red depending on state.
| State | LOGO |
STATUS |
POWER |
|---|---|---|---|
| Normal Operation | Solid GREEN |
||
| Booting | Solid/Blinking, GREEN |
Solid GREEN |
|
| Error States | Solid/Blinking, RED |
Solid RED |
|
| Going to Reboot | Varies |
Off |
Fast Flash RED |
| Going to Reset Containers | Solid RED |
||
| Going into Recovery Mode | Blinking RED |
||
- To check the status of your VeeaHub, use VeeaHub Manager or Control Center.
- Status/Power lights react to RESET button presses. There are not error conditions.
- Press the RESET button for less than 5 seconds to reboot.
- Press the RESET button for 5 - 9 seconds to reset containers.
- Press the RESET button for more than 10 seconds to enter Recovery Mode.
VHH09/VHH10: VeeaHub Outdoor

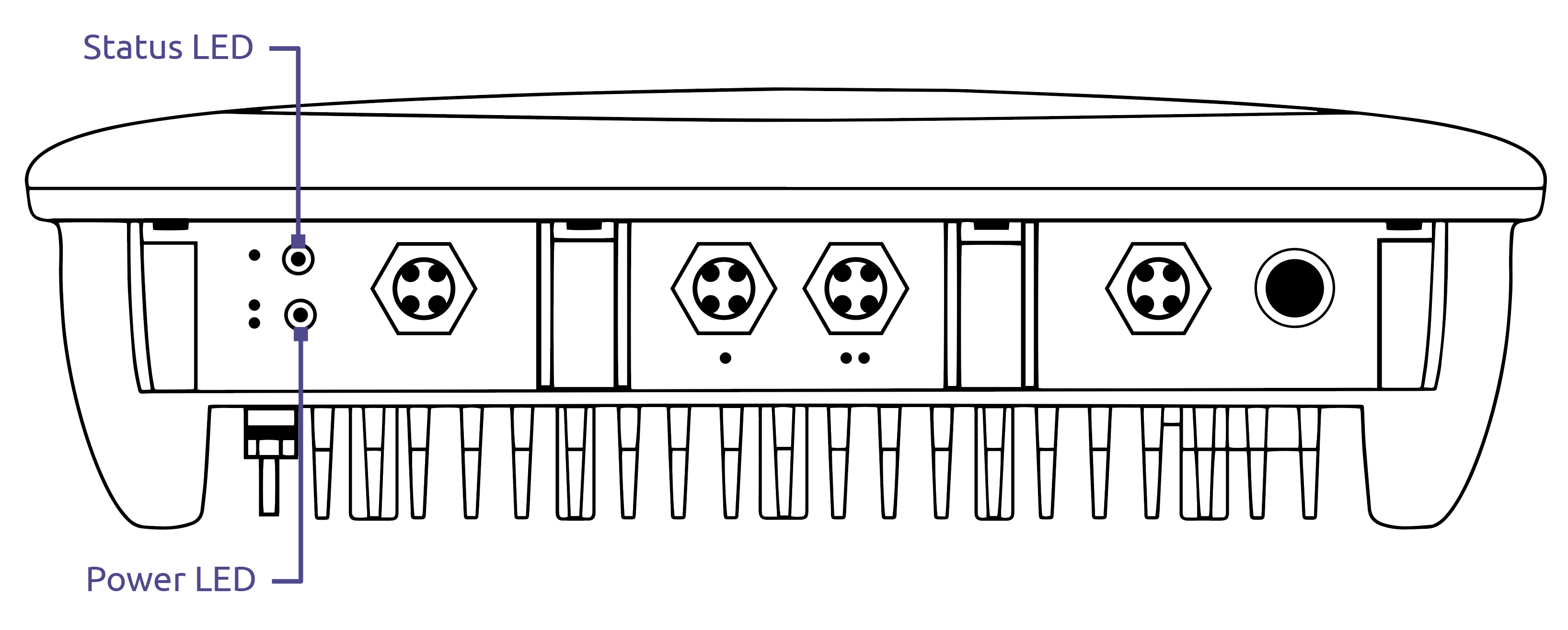

- Two status lights, marked with one or two dots are located next to the ports.
- First light is the STATUS LED while the second one is the POWER LED.
- LEDs are only green. VHHxx series do not have a LOGO led.
| State | STATUS |
POWER |
|---|---|---|
| Normal Operation | Solid |
|
| Booting | Solid/Blinking |
Solid |
| Error States | Solid/Blinking |
Slow Flash |
| Going to Reboot | Off |
Fast Flash |
| Going to Reset Containers | Solid |
|
| Going into Recovery Mode | Blinking |
|
- To check the status of your VeeaHub, use VeeaHub Manager or Control Center.
- Status/Power lights react to RESET button presses. There are not error conditions.
- Press the RESET button for less than 5 seconds to reboot.
- Press the RESET button for 5 - 9 seconds to reset containers.
- Press the RESET button for more than 10 seconds to enter Recovery Mode.
