This guide provides step-by-step instructions for unboxing, mounting, powering on, and enrolling your VeeaHub to prepare it for integration into your VeeaONE mesh network. For best results and to avoid potential damage, we strongly recommend reviewing the entire guide before beginning setup.

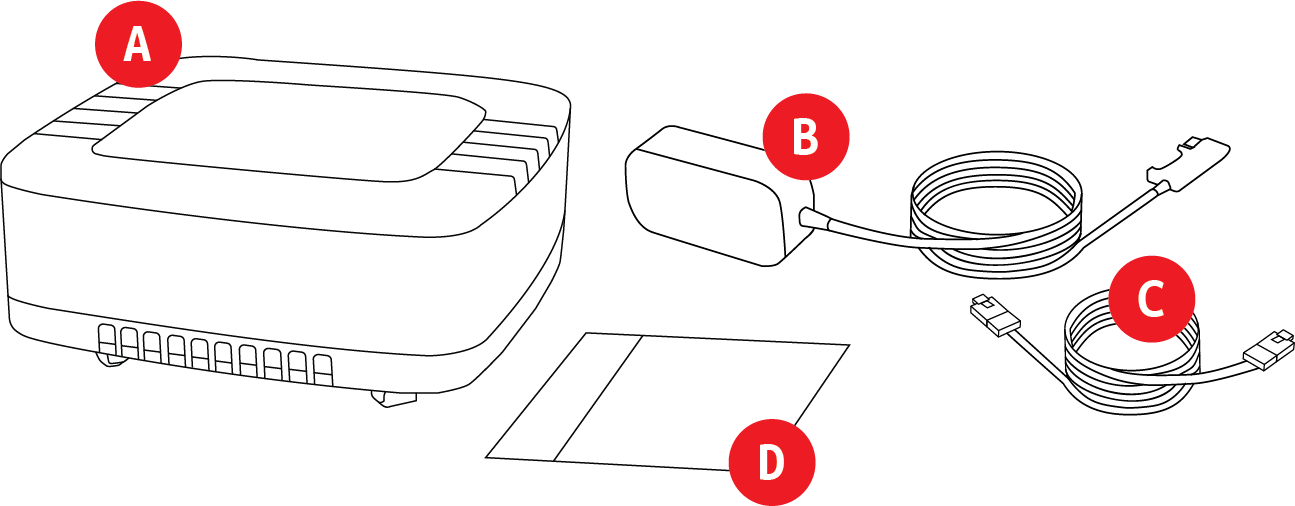

Packaging Contents
|

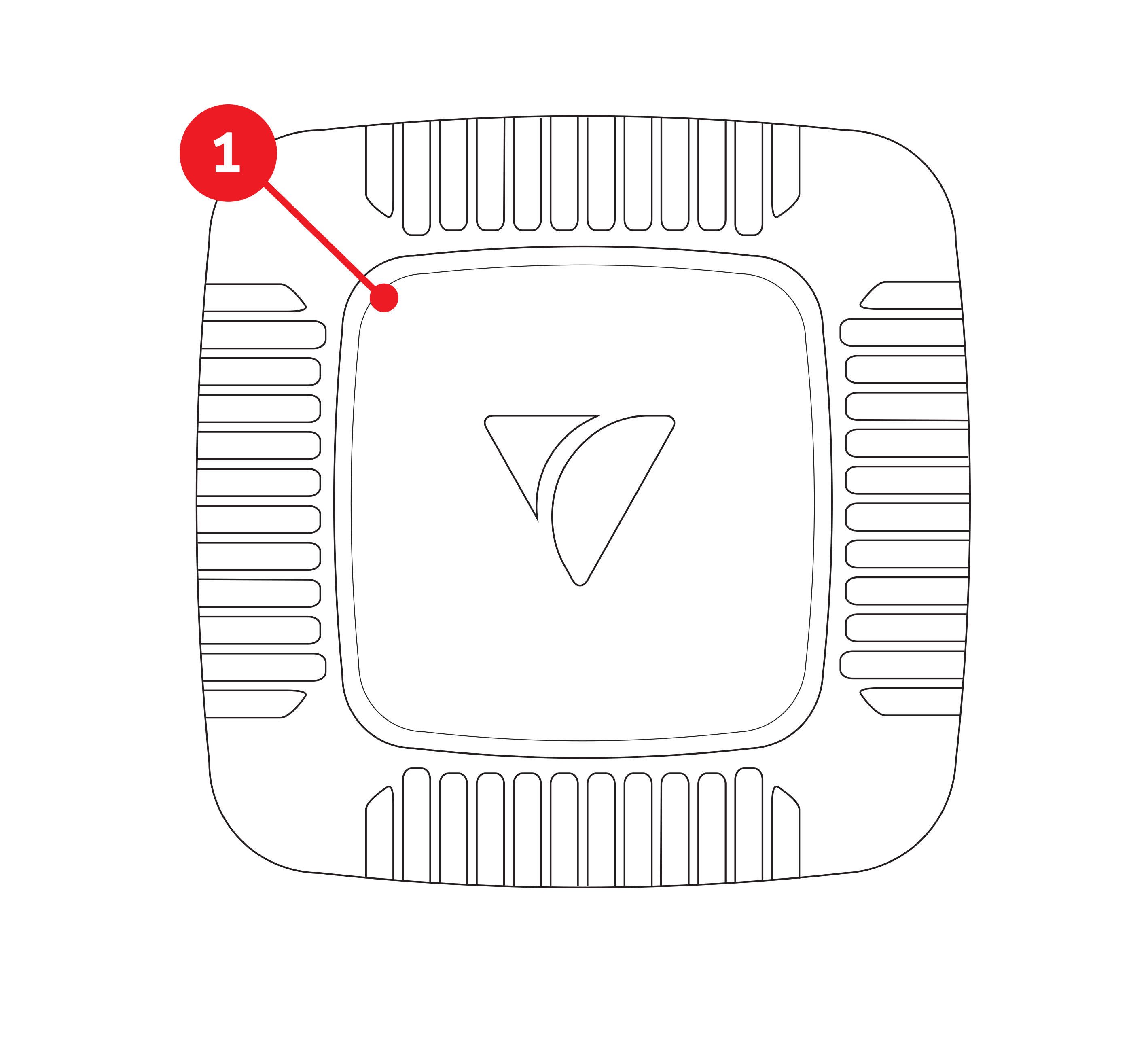

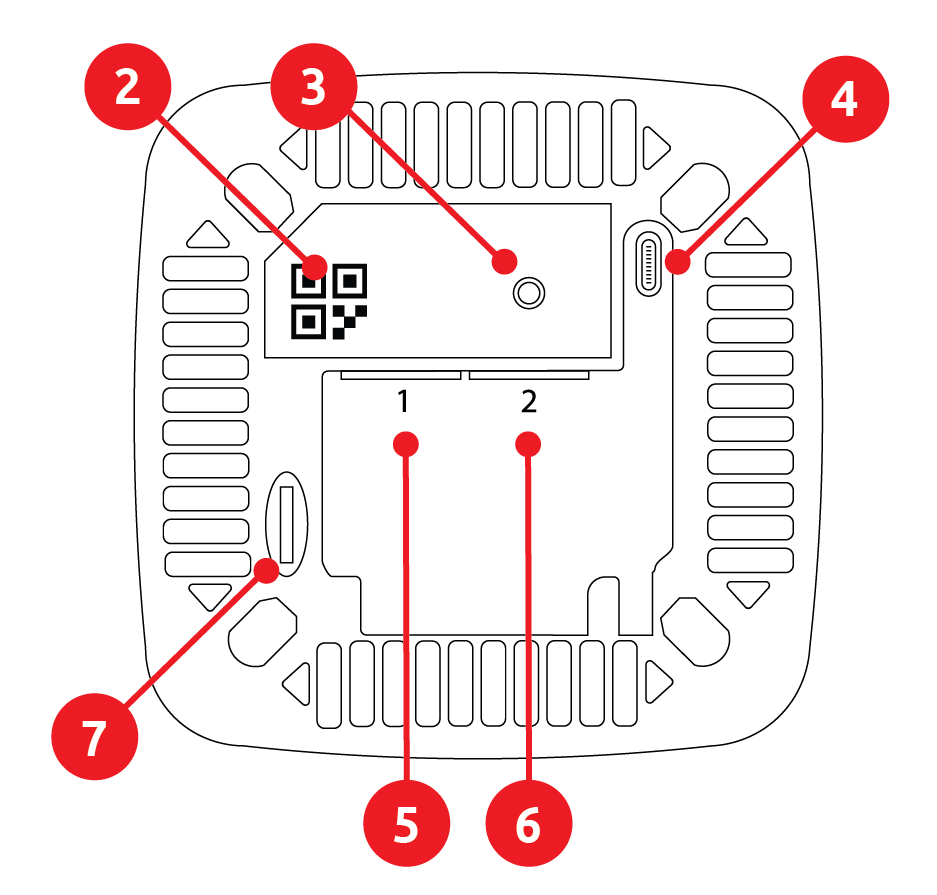

Hardware Overview
|
|
|
|
WAN & LAN Connectivity

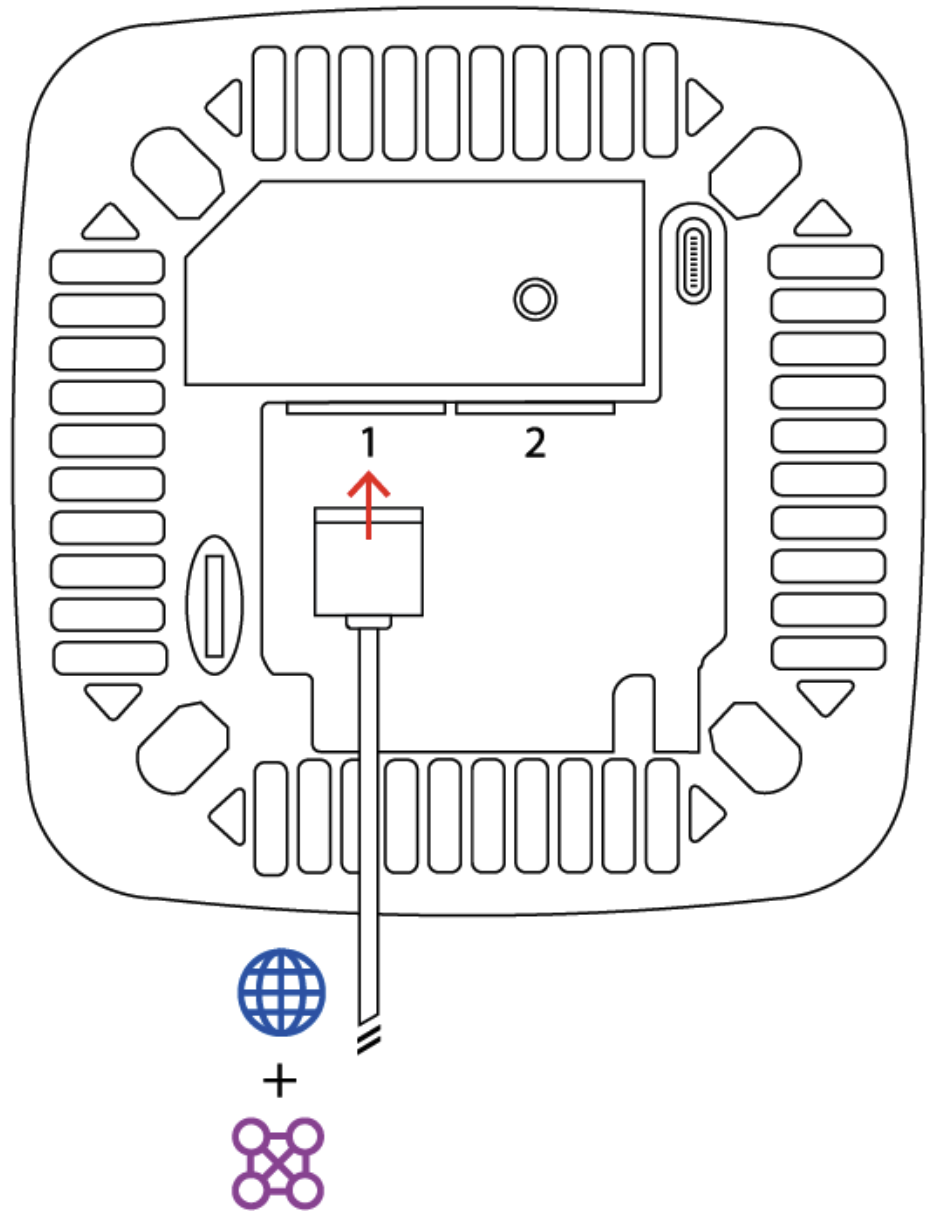

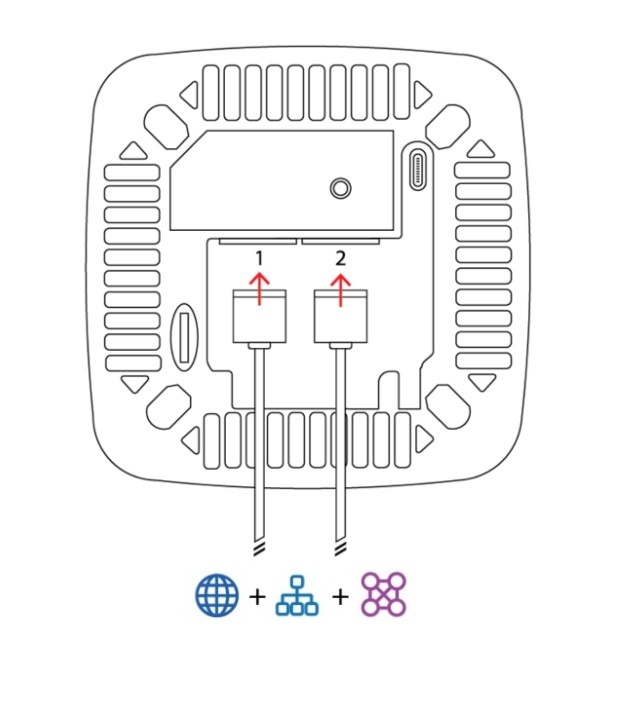

| WAN via Ethernet | WAN and LAN via Ethernet |
|---|---|
|
|
Power Options
| If your unit uses the Power Supply Unit | Connect the Veea supplied PSU to the connector on the underside of the VHC25. Plug the power connector into a suitable mains power wall socket. |
|---|---|
| If your unit uses PoE for power | Connect the PoE-enabled Ethernet cable to the PoE cradle (see below). |
Mounting Options

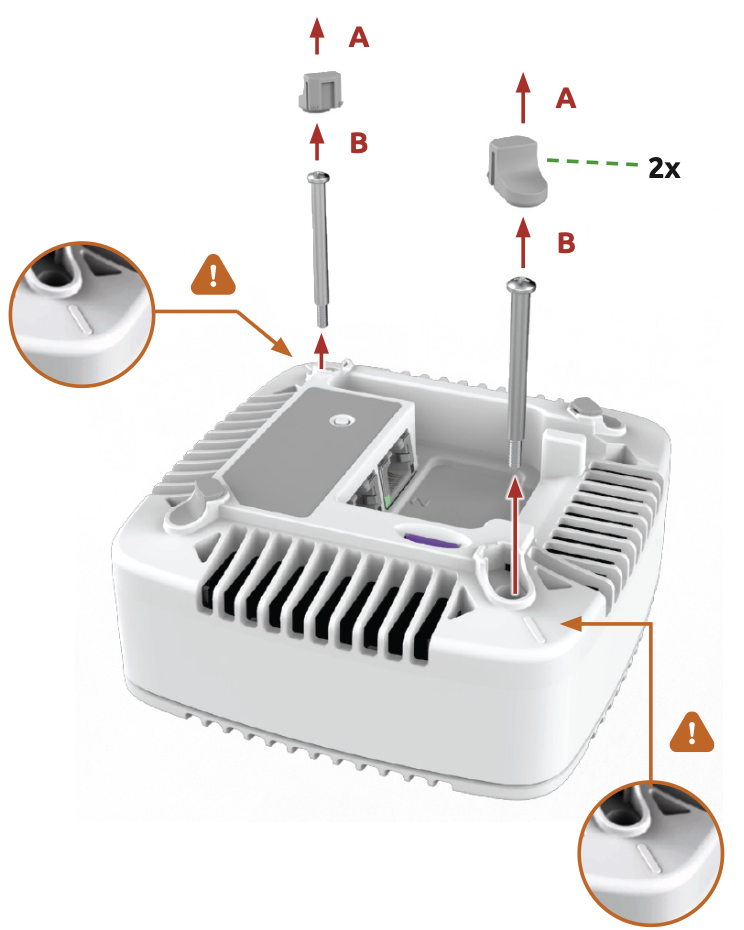

Unit Preparation

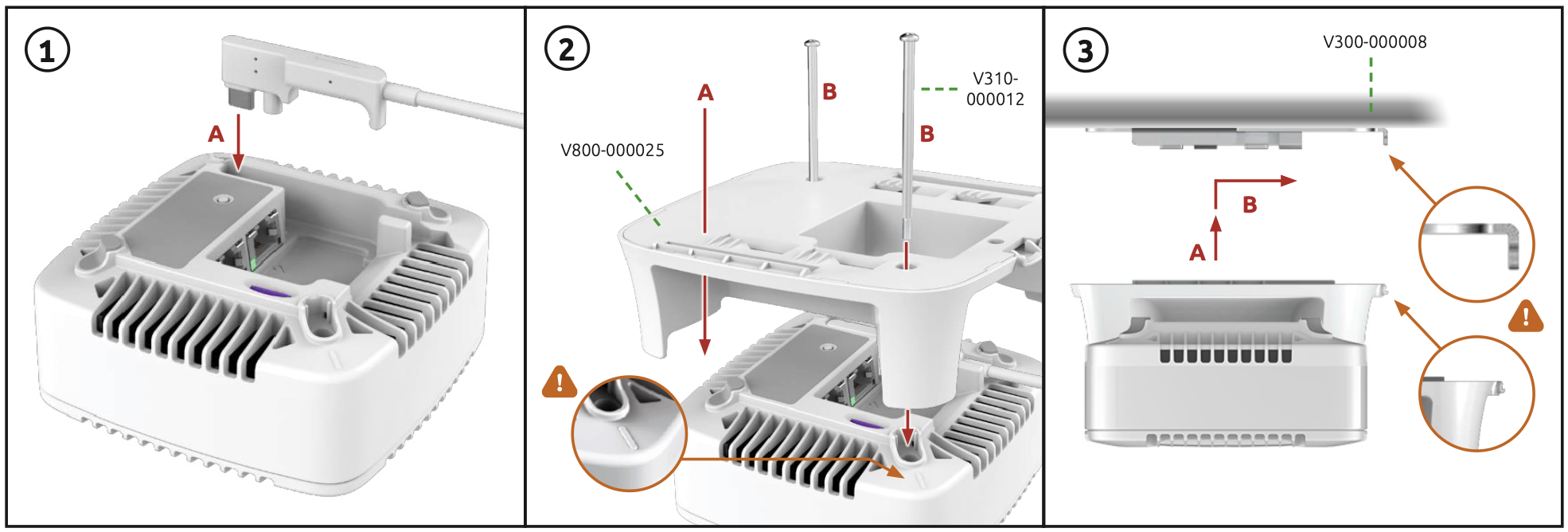

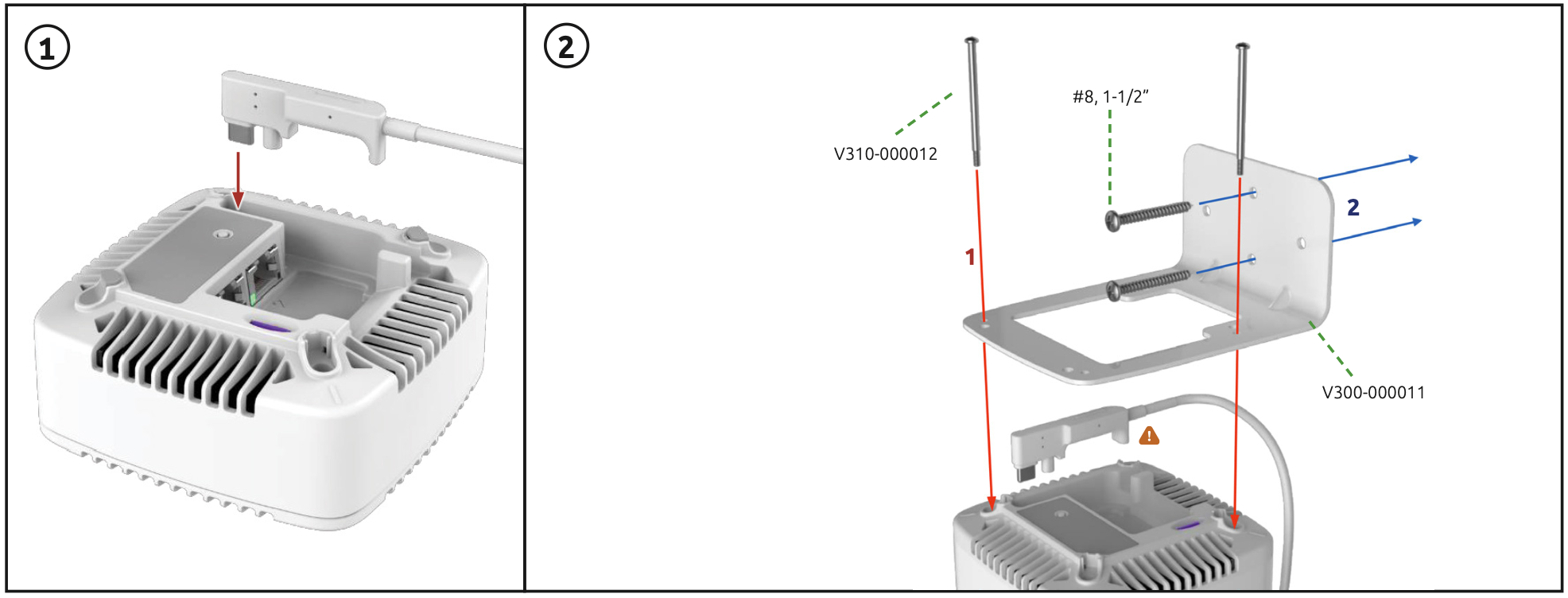

Ceiling Installation

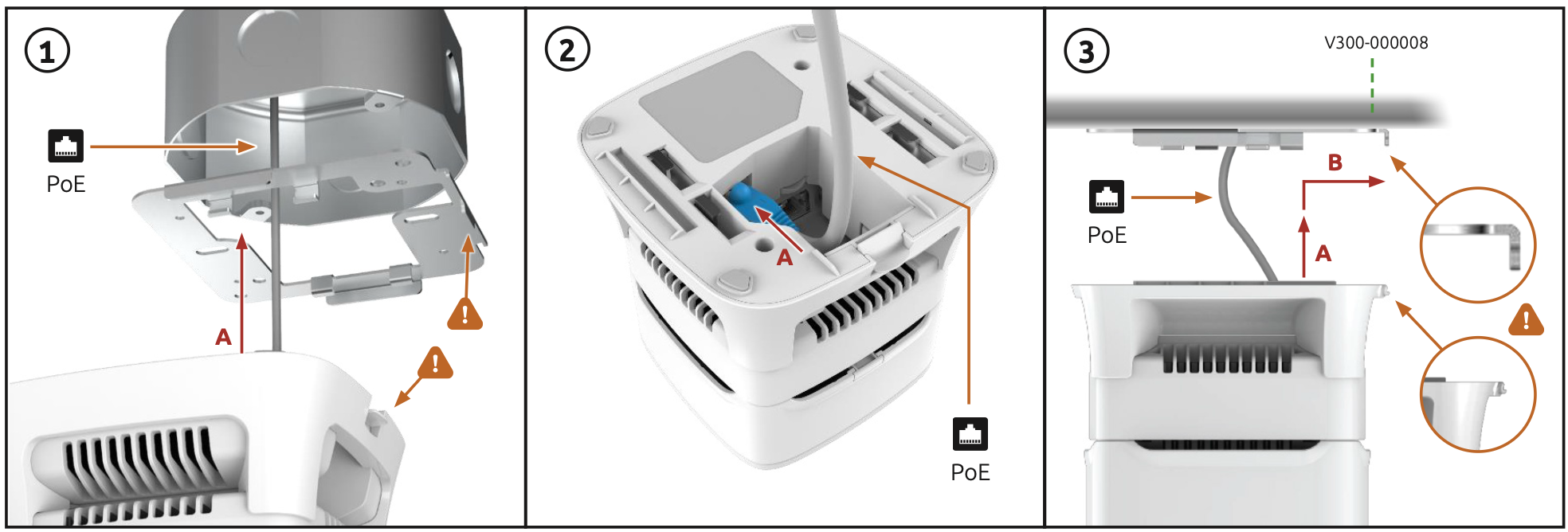

Ceiling Installation (with PoE)
Wall Installation

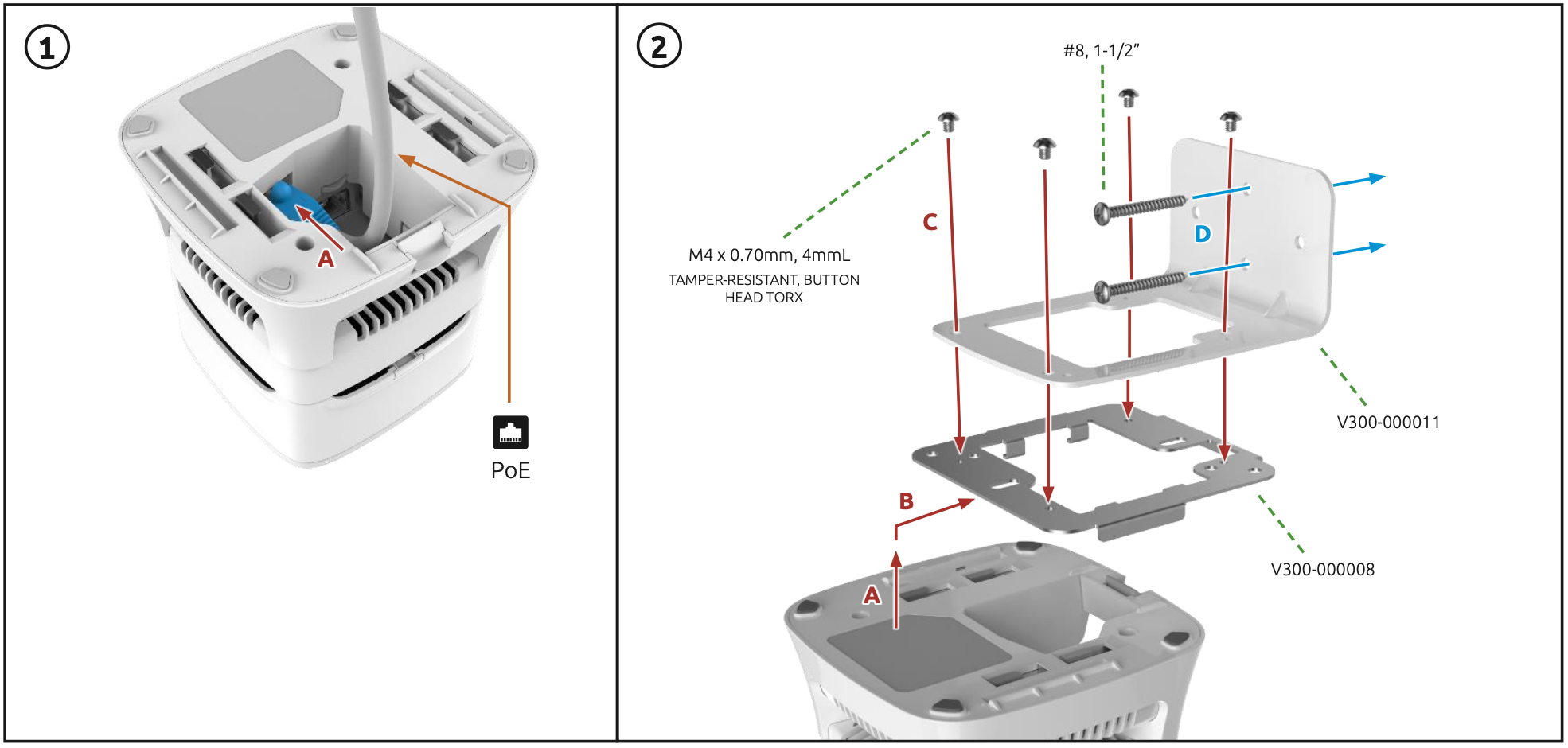

Wall Installation (with PoE)
Next Steps
- If you haven't enrolled your device yet, see Setting up your VeeaHubs.
- If you have enrolled your device, see Monitoring your VeeaHubs.
- For best practices on choosing the ideal installation location, see How should i position my VeeaHubs.
- If you encounter a problem, see Troubleshooting for help.
Warnings
To prevent the device from overheating or being damaged you must ensure CAUTIONS are adhered to as follows:
- Ambient Temperature. Do not operate the VHC25 STAX in an area that exceeds an ambient temperature of 40°C (104°F).
- Air Flow. The airflow around your VeeaHub must not be obstructed.
- Mechanical Loads. Be sure that the device is level and stable to avoid any hazardous conditions and that it is secure to prevent it from sliding or shifting out of position. Do not place anything on top of the device, as excessive weight may damage it.
- Connector Damage. To avoid damage when fitting RJ45 Ethernet connectors, gently press down on the neck of the Ethernet cable while inserting it into the Ethernet port.
- Power Supply Limitations. Only use the Veea supplied Power Supply Unit (PSU). Use of a different power supply may damage the VeeaHub.
- Environment. The VHC25 STAX must not be used in outdoor environments. It must not come into contact with any fluids or substances which might otherwise cause damage or present a fire or electrical hazard to the VeeaHub or personnel.
